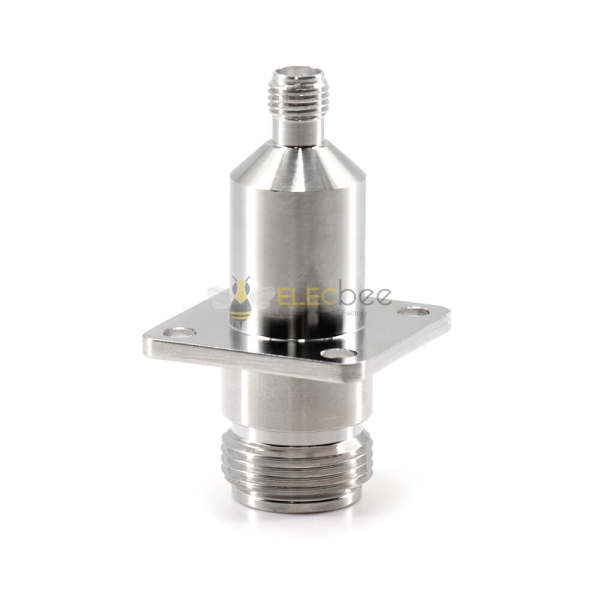

N Female To Sma Female 6Ghz 4-Hole Flange Stainless Steel Rf Coax Connector

Name: N Female To Sma Female 6Ghz 4-Hole Flange Stainless Steel Rf Coax Connector
Brand: Elecbee
SKU: EB-DRF-0121
Price: 16.83 USD
Availability: InStock

$0.19

SKU: EB-DRF-0121

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$15.99

10-19 PCS

$15.15

20-99 PCS

$13.46

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

N-type Connector, N Female To Sma Female, Straight, 4-Hole Flange , Stainless Steel,High frequency RF coax connector;
Operation from DC to 18 GHz
Impedance: 50 Ω
Dielectric: Air
Ruggedized Construction for Repeatability and Reliability
Outer conductor diameter: 7 mm
Interface Standards: IEEE 287-2007
Low V.S.W.R.: DC ～ 4GHz：1.04 max

Contact Sales

N Female To Sma Female 6Ghz 4-Hole Flange Stainless Steel Rf Coax Connector

EB-DRF-0121

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Body Material

Steel
Connector A Type

N Type
Connector A Gender

Female
Connector A Direction

Straight
Connector B Type

SMA
Connector B Gender

Female
Connector B Direction

Straight

Description

4 ～ 8GHz：1.06 max.

8 ～ 18GHz：1.10 max.

Appliance:

Test and measurement systems
Network routers and switches
RFID
Instrumentation test fixtures equipment
Semiconductor ATE test boards
Radar systems

Electrical Characteristics

Impedance：50 ohm
Frequency Range:DC to 18 GHz
Rated Voltage:500VAC(r.m.s.)
Insulation Resistance:1000M Ω (min.) at 500V DC
Contact Resistance:3m Ω（max.)
Shielding Effectiveness:≥ 100 dB

Mechanical Characteristics

Mating Torque:5 - 7 in - lbs
Connector Durability：500 mating cycles min

Environmental Characteristics

Temperature Range：-40 〜 +85℃

Material:

Part	Material	Finish
Body	Stainless Steel	Stainless stee
Center Contact Pin	Copper Alloy	Au Plating
Insulator	PTFE	white
