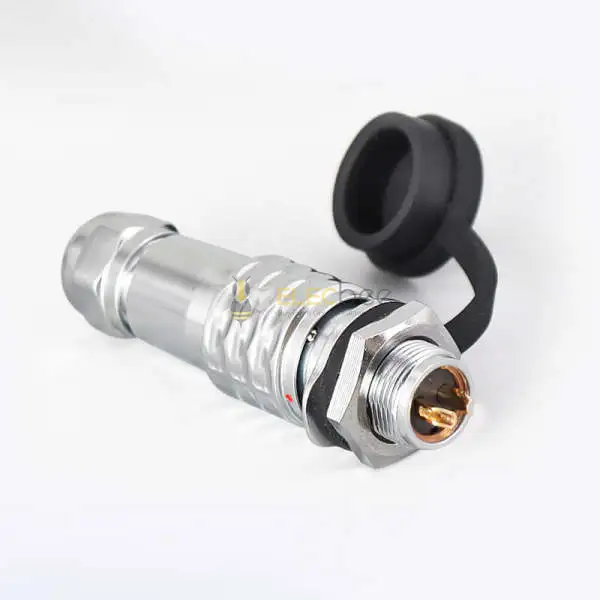

SF12-2 Pin Male Plug+Female Socket Waterproof Back Mount Industrial Metal Aviation Circular Quick Push-Pull
Feature
- Sloder, Push-pull quick lock, Male plug, Female socket , Back mount, Waterproof, 2pin
- Waterproof，IP67
- Low frequency
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application :
- Applications: used in aviation, navigation, computers, communications, anti-theft devices, transportation, machinery and electronics, etc.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Panel Mount / Cable
-
Terminal type
Solder Type
-
Installation characteristics
Back Mount
-
Gender
Male and Female (one Pair)
-
direction
Straight
-
Number of Positions
2pin
-
waterproof level
IP67
- Description
Connection method： Push-pull Quick
SF6 options: 2,3,4,5 pin
SF12 options:2,3,4,5,6,7,9 Pin
SF20 option：2,3,4,5,6,7,9,10,12 pin
Electrical Characteristics
- Rated current:25A (2,3,4,5pin）
- Rated current:15A (6pin）
- Rated current:10A (7pin）
- Rated current:5A (8,9,10,12pin）
- Rated voltage:500V
- Ø1.00mm Center Contact Resistance≤5 mΩ(Milliohms max.)
- Ø2.5mm Center Contact Resistance≤1 mΩ(Milliohms max.)
- Ø1.5mm Center Contact Resistance≤2.5 mΩ(Milliohms max)
- Ø2.0mm Center Contact Resistance≤2.5 mΩ(Milliohms max)
- Insultation Resistance ≧2000 mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: Push-pull Quick
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics:-45℃~+85℃
Material:
| Part | Material | Finish |
| Body | Copper chrome plating | Copper chrome plating |
| Center Contact Pin | Copper gold plating | Copper gold plating |
| Insulator | PPS | Black |
