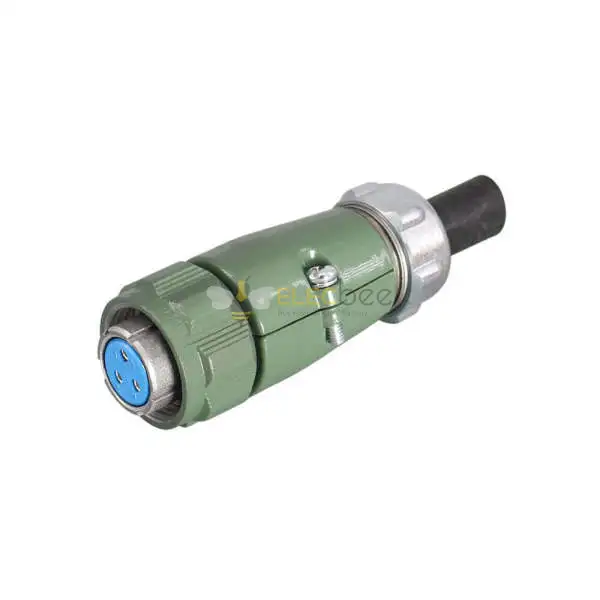

Formal Plug YD20 3 Pin 25A Waterproof Aviation Connector Straight-Formal TQ
Feature
- Sloder, Male socket, Female plug, Formal, Female socket, Male plug, Reverse mount, Straight
- Waterproof，IP65
- Low frequency
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application :
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Cable
-
Terminal type
Solder Type
-
Gender
Female
-
direction
Straight
-
Number of Positions
3pin
-
waterproof level
IP65
- Description
YD20 options: 3,4,5,7 pin
YD28 options:4,7,10,15 Pin
YD32 option：4pin
YD40 option:31 Pin
Electrical Characteristics
- Rated current: 10A (contact diameter Ø1.5mm）
- Rated current:25A (contact diameter Ø2.5mm）
- Rated current:50A (contact diameter Ø3.5mm）
- Rated current:100A (contact diameter Ø5.5mm）
- Ø1.5mm Center Contact Resistance≤2.5 mΩ(Milliohms max.)
- Ø2.5mm Center Contact Resistance≤1 mΩ(Milliohms max.)
- Ø3.5mm Center Contact Resistance≤0.5 mΩ(Milliohms max)
- Ø5.5mm Center Contact Resistance≤0.3 mΩ(Milliohms max)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧2000 mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: Threaded
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics:-45℃~+125℃
Material:
| Part | Material | Finish |
| Body | Aluminum alloy | Aluminum alloy |
| Center Contact Pin | Gold/Sliver | Gold/Sliver |
| Insulator | PPS | Blue |
