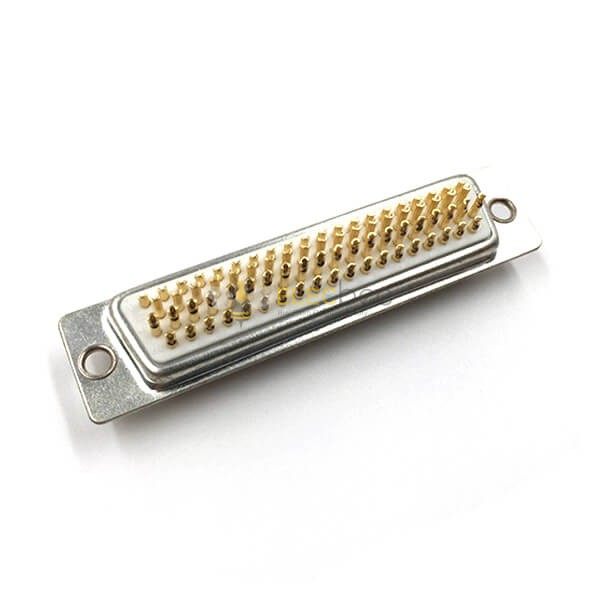

78 Pin D Sub Female Connector Machine Contacts Receptacle Connector Solder Type

Name: 78 Pin D Sub Female Connector Machine Contacts Receptacle Connector Solder Type
Brand: Elecbee
SKU: EB-602-0033
Price: 14.00 USD
Availability: InStock
Rating: 95 / 20 (20 reviews)

$14.00

SKU: EB-602-0033

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$13.30

10-19 PCS

$11.97

20-99 PCS

$9.58

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

78 Pin D Sub Female Connector Machine Contacts Receptacle Connector Solder Type

EB-602-0033

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
direction

Straight
Terminal type

Solder Cup
Continuous plating

machined pin
filter

No
Number of Positions

78pin
Connector Type

Socket
Port number

Single
Installation characteristics

Shell (Unthreaded)
waterproof level

Not Waterproof
Continuous plating

Gold
Number of Rows

4

Description

Electrical Characteristics

Contact resistance :10 mOhm
Current rating signal:3 A
Working voltage:60 V
Dielectric with standing voltage signal:1000 V
Insulation resistance: 5000mΩ min

Mechanical Characteristics

Extraction force:<50 N
Insertion force：<50 N
Mating cycles ：50

Environmental Characteristics

Operating Temperature：-55°C~ + 105°C

Material:

Part	Material	Finish
Body	SPCC steel	Tin
Center Contact Pin	Copper alloy	------
Insulator	Glass Filled Thermoplastic (UL94V-0)	Black/White
