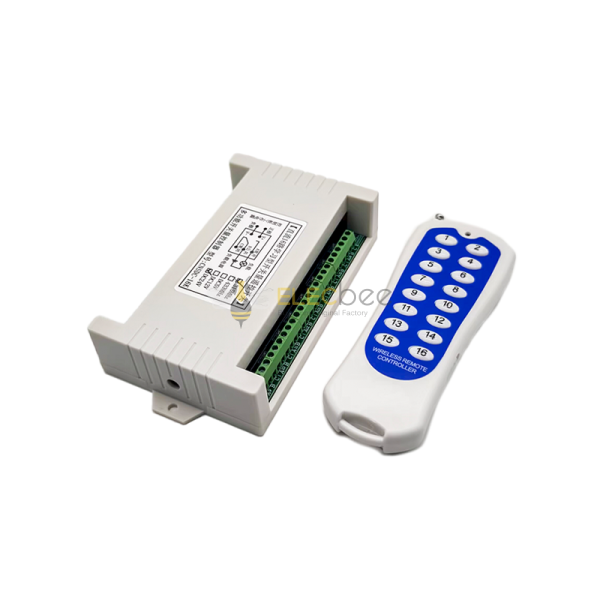

DC 24V 16CH Channel Wireless RF Remote Control Switch With Transmitter For Smart Home

Radio frequency: 315MHz
Decode: Learning code
Operating type: Momentary/Toggle/Latch selectable
Relay: 10A 120VAC, 20A/14V DC
Size: 98mm x 80mm x 27mm

12CH transmitter:

Radio frequency: 315 MHz
Operating voltage: 23A 12VDC Battery
Decode: Fixed code, Soldering
Transmitting distance: 800m

How to work:

Momentary: Press->ON, Release->OFF
Toggle: Press->ON, Press again->OFF
Latch: Press->ON, Press other->OFF

Way of working:

There are five kinds of ways: signal self-locking, signal interlock, signal non-lock, signal self-locking and non-lock co-exist
1. Signal self-locking - press the remote control 1 key to learn
2. Signal interlock - press the remote control 2 key to learn
3. Signal non-lock - press the remote control 3 key to learn
4. The signal 1 to 8 channel self-locking and 9 to 16 channel non-lock coexist - press the remote control 4 key to learn
5. The 1 channel signal self-locking and 2 to 16 channel non-lock coexist - press the remote control 5 key to learn

Output method:

1. The signal self-locking: press the remote control 1 key to learn
Press the remote control 1 key, and 1 key corresponding relay pull and hold, and then press 1 key, 1 relay is disconnected; press the remote control 2 key, the 2 key corresponds to the relay pull and hold, press the 2 key, the 2 key relay disconnected; 3 ~ 16 key according to this cycle works.
2. The signal non-lock: press the remote control 2 key to learn
Press and hold the remote control 1 key, and the corresponding 1 key relay pull, release to disconnect the relay, press the No. 2 key, and the corresponding key No. 2 relay pull and hold, release to disconnect the relay; 3-16 keys according to this cycle works.
3. The signal interlock: Press the remote control 3 key to learn
Press the remote control No. 1 key, the corresponding No. 1 relay pull and hold, press the No. 2 key, No. 1 relay is disconnected, and the corresponding key No. 2 relay pull and hold; 3 ~ 16 key according to this cycle works.
4. The signal 1 to 8 channel self-locking and 9 to 16 non-lock co-exist: Press the remote control 4 key to learn
Corresponding to the remote control of 15 relays, of which 1 to 8 channel is self-locking function, 9 to 16 channel is non-lock function.
5. The first channel signal self-locking and 2 ~ 16 non-lock co-exist: Press the remote control 5 key to learn
Corresponding with the remote control of 16 relays, of which the first channel is self-locking function, 2 to 16 channel is non-lock function.

Note: If you want to learn another functions, please clear the code and re-learn other codes.
We don't supply any instructions, please note about this before you buy.

Learn method:

Press the learning key, after the light on release and enter learning state. According to your needs to select a key to learn, after receiving the signal, the indicator lights flashing once means learning is success.

Clear method:

Press and hold the learning button about 8 seconds until the indicator goes out indicating that it has cleared successfully. The receiver can store up to 30 different remote control codes.
