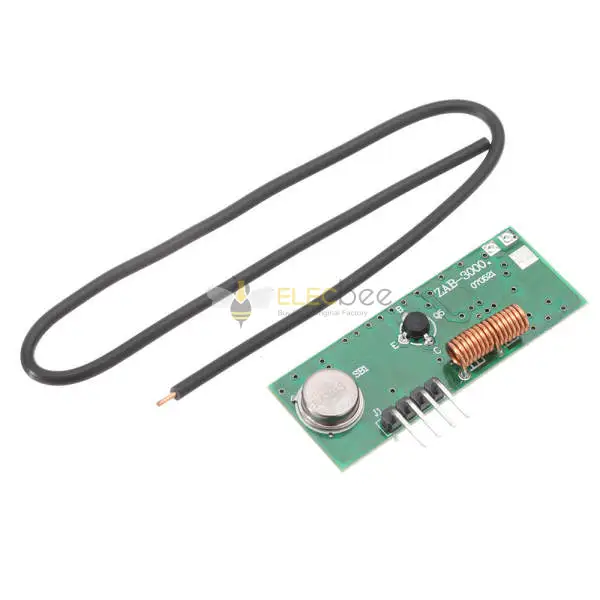

3pcs 433MHZ High Power Wireless Transmitter Module 3000M Long Range ASK Transceiver Board

$18.99
SKU: EB0042892
Copy to clipboard
81 Sales
28 reviews
Out Of Stock Availability
Bulk Purchase, Auto Savings:
$18.04
10-19 PCS
$17.09
20-99 PCS
$15.19
100+ PCS
Deliver to United States
Flat Shipping Rate $10.00



Product Name: Wireless 3000m Transmitter Module
Product type ZAB-3000 (without coding)
Dimensions : 45mm*17mm*6.2mm
Working voltage: DC 9V ~12V
Working current: 200~220mA
Operating frequency: 433MHz
Transmit power: >10mw
Launch distance: 2000-3000 meters
Radiated power: 1.5 W
Modulation method: ASK
Quiescent current: 0uA

Rated parameter Symbol Value
DC supply voltage VDD-VSS 5V
Storage temperature range (TS) TSTG  -12°C to 75°C
Welding temperature  +260°C

  PIN Description
1 ANT RF signal input pin, this pin should be connected to the antenna
2 VSS Positive power supply
3/4 GND Negative power supply
5 DATA Data signal output, compatible with CMOS levels
see more
