Name: CJMCU-30003 MAX30003 Single Channel Bioelectric Potential Analog Front End AFE ECG R-R Detection Converter
Brand: Elecbee
SKU: EB0043157
Price: 53.02 USD
Availability: InStock

$2,72

SKU: EB0043157

Copy to clipboard

92 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$50.37

10-19 PCS

$47.72

20-99 PCS

$42.42

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

● Clinical-Grade ECG AFE with High-Resolution Data Converter

• 15.5 Bits Effective Resolution with 5µVP-P Noise

● Better Dry Starts Due to Much Improved Real World CMRR and High Input Impedance

• Fully Differential Input Structure with CMRR > 100dB

● Offers Better Common-Mode to Differential Mode Conversion Due to High Input Impedance

• High Input Impedance > 500MΩ for Extremely Low Common-to-Differential Mode Conversion

● Minimum Signal Attenuation at the Input During Dry Start Due to High Electrode Impedance

● High DC Offset Range of ±650mV (1.8V, typ) Allows to Be Used with Wide Variety of Electrodes

● High AC Dynamic Range of 65mVP-P Will Help the AFE Not Saturate in the Presence of Motion/Direct Electrode Hits

● Longer Battery Life Compared to Competing Solutions

• 85µW at 1.1V Supply Voltage

● Leads-On Interrupt Feature Allows to Keep µC in Deep Sleep Mode with RTC Off Until Valid Lead Condition is Detected

• Lead-On Detect Current: 0.7µA (typ)

● Built-In Heart Rate Detection with Interrupt Feature Eliminates the Need to Run HR Algorithm on the Controller

• Robust R-R Detection in High Motion Environment at Extremely Low Power

● Configurable Interrupts Allows the µC Wake-Up Only on Every Heart Beat Reducing the Overall System Power

● High Accuracy Allows for More Physiological Data Extractions

● 32-Word FIFO Allows You to Wake Up µController Every 256ms with Full ECG Acquisition

● High-Speed SPI Interface

● Shutdown Current of 0.5µA (typ)

Schematic: Click here to open

More information: Click here to open

Contact Sales

-30003 MAX30003 Single Channel Bioelectric Potential Analog Front End AFE ECG R-R Detection Converter

EB0043157

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Tags: Converter

Pay with Ease

Trusted Delivery

Mobile

Description

Description:

The MAX30003 is a complete, biopotential, analog frontend solution for wearable applications. It offers high performance for clinical and fitness applications, with ultra-low power for long battery life.

The MAX30003 is a single biopotential channel providing ECG waveforms and heart rate detection.

The biopotential channel has ESD protection, EMI filtering, internal lead biasing, DC leads-off detection, ultra-low power leads-on detection during standby mode, and extensive calibration voltages for built-in self-test. Soft power-up sequencing ensures no large transients are injected into the electrodes.

The biopotential channel also has high input impedance, low noise, high CMRR, programmable gain, various low-pass, and high-pass filter options, and a high-resolution analog-to-digital converter.

The biopotential channel is DC coupled, can handle large electrode voltage offsets and has a fast recovery mode to quickly recover from overdrive conditions, such as defibrillation and electrosurgery.

The MAX30003 is available in a 28-pin TQFN and 30-bump wafer-level package (WLP), operating over the 0°C to +70°C commercial temperature range.

Applications:

● Single Lead Event Monitors for Arrhythmia Detection

● Single Lead Wireless Patches for At-Home/In-Hospital Monitoring

● Chest Band Heart Rate Monitors for Fitness Applications

● Bio Authentication and ECG-On-Demand Applications

Benefits and

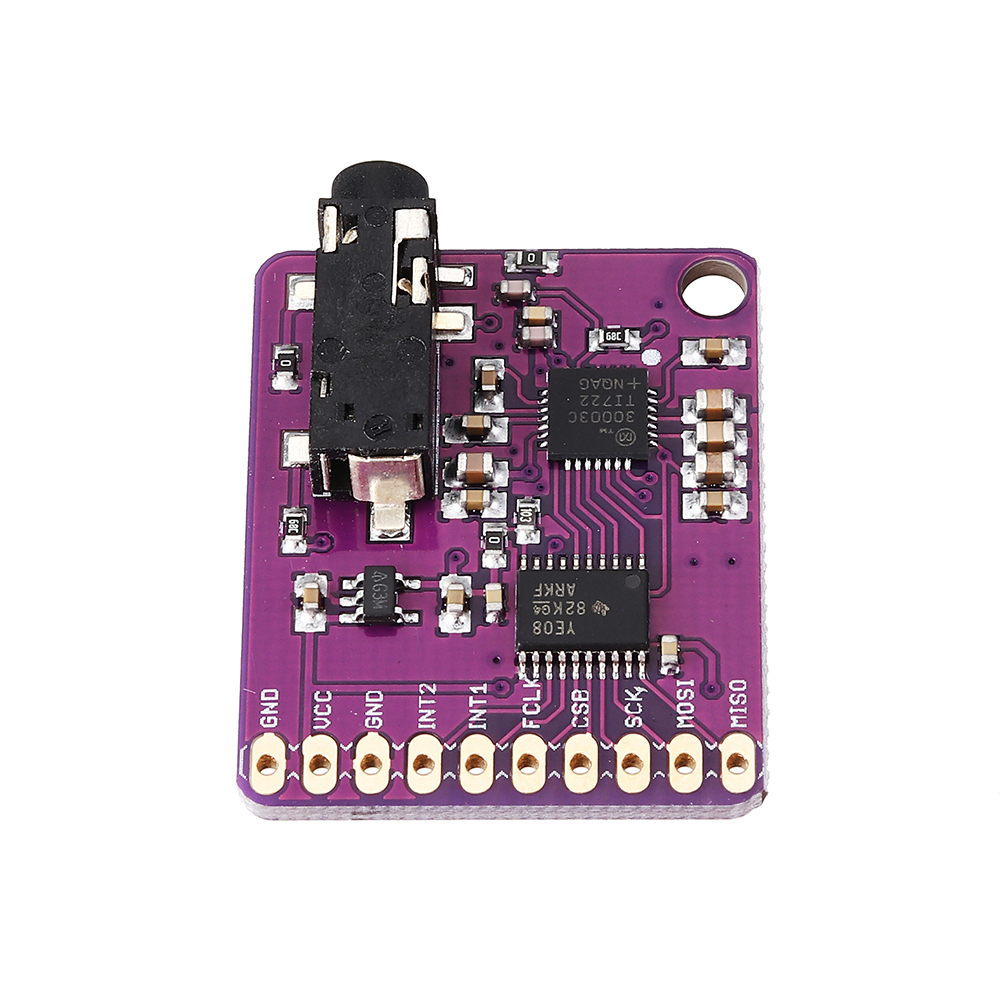

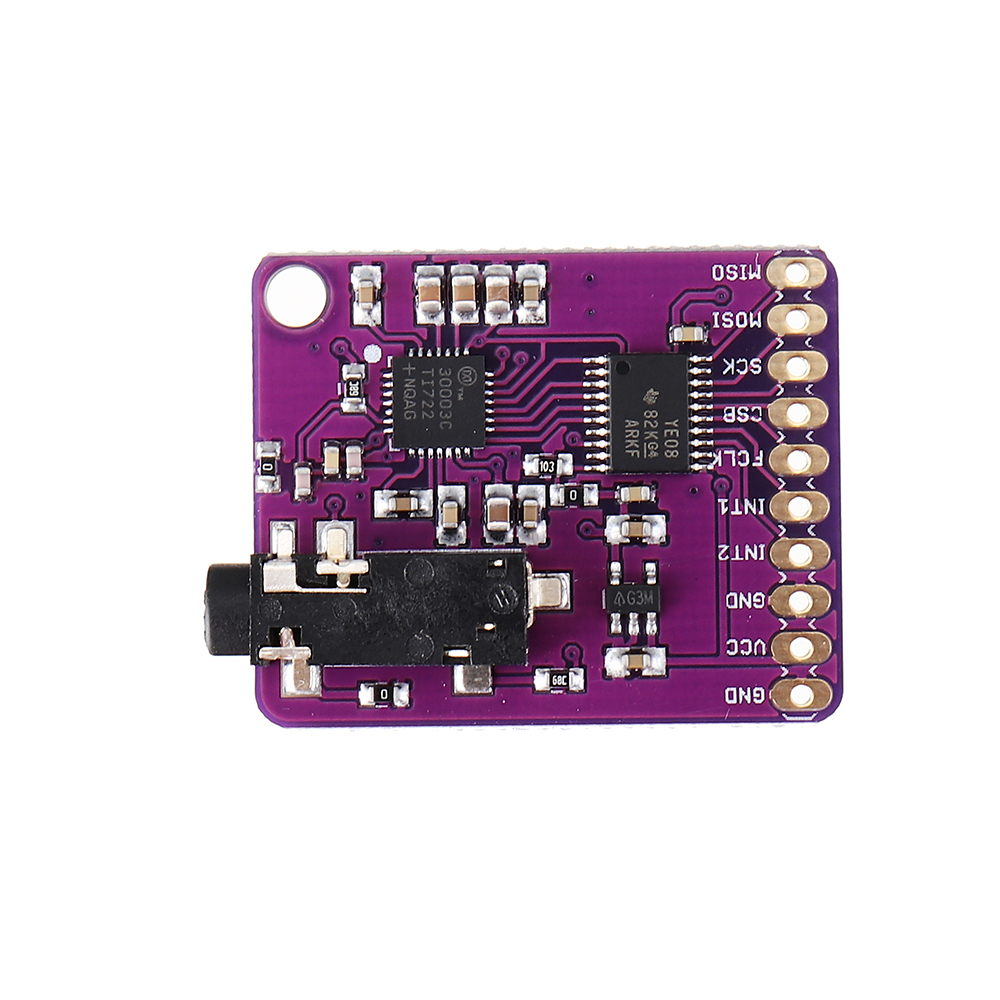

1 x CJMCU-30003
