-1220 ADS1220 ADC I2C Low Power 24 Bit A/D Converter Sensor Module

-1220 ADS1220 ADC I2C Low Power 24 Bit A/D Converter Sensor Module

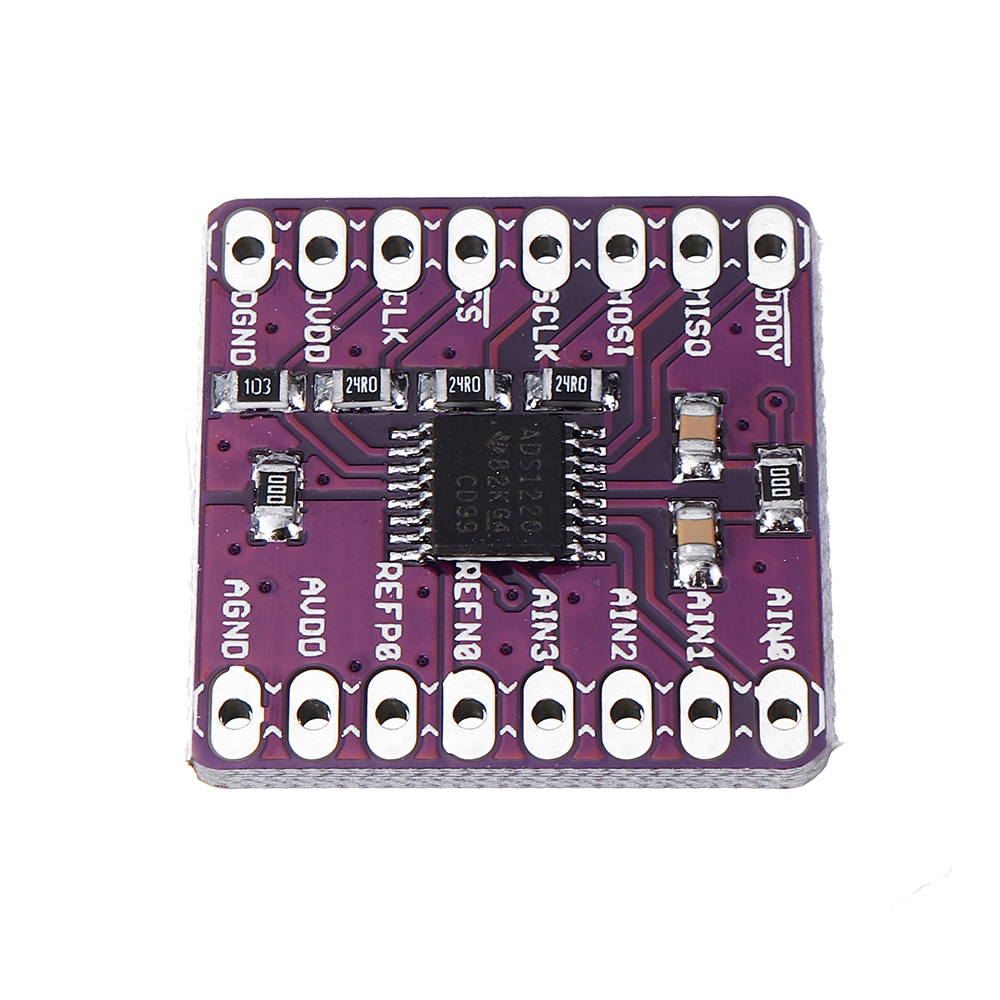

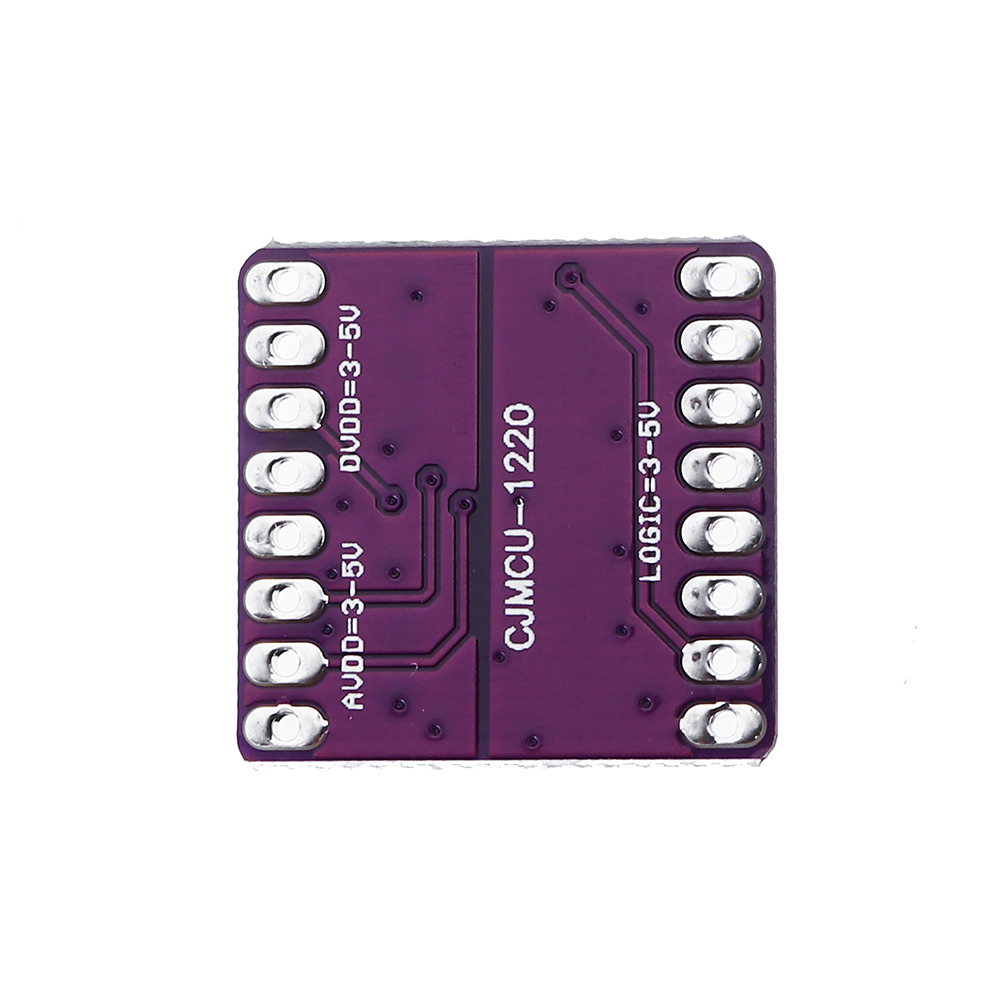

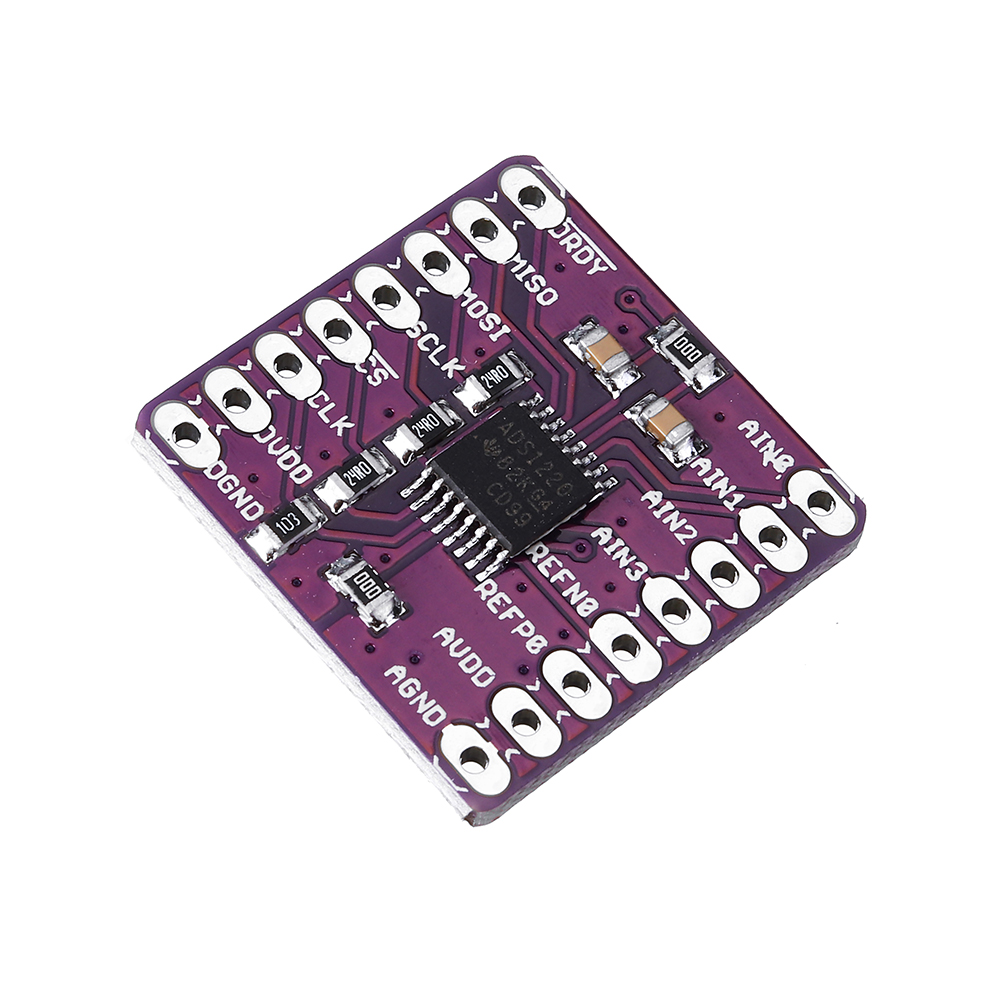

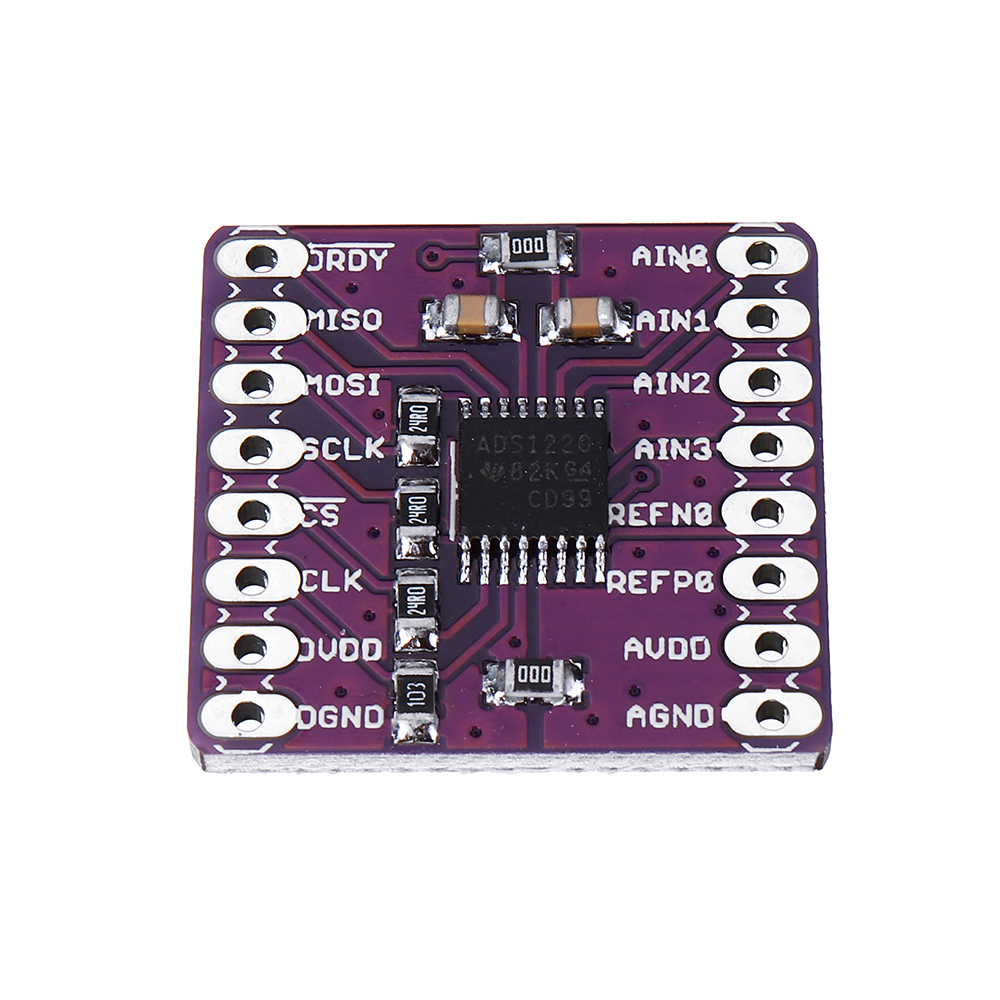

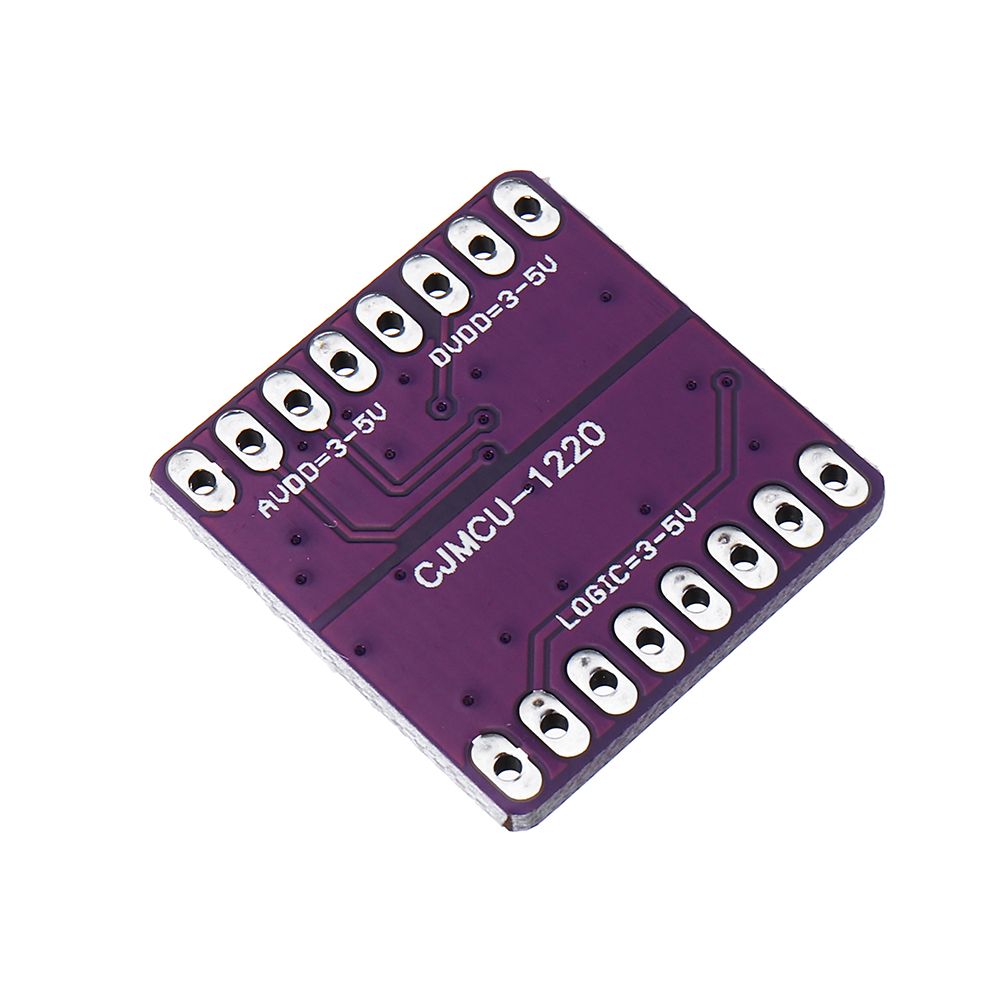

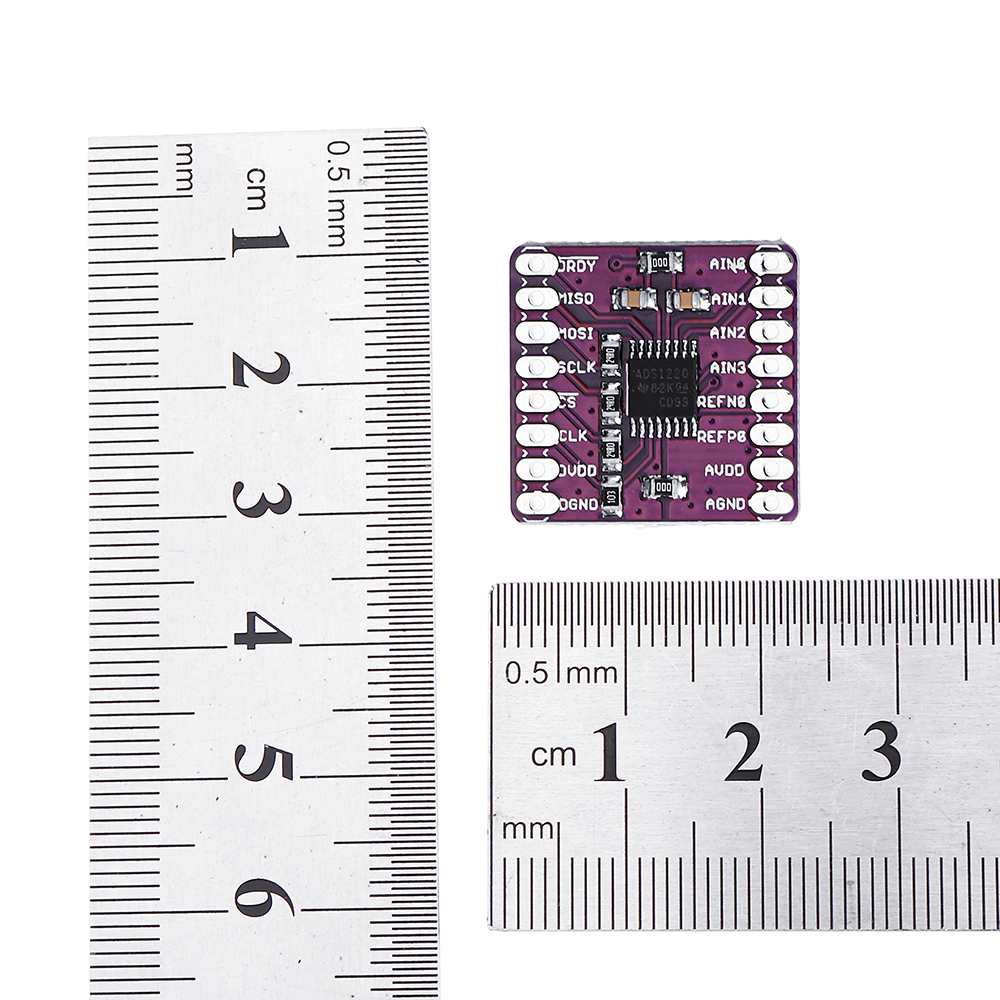

Name: CJMCU-1220 ADS1220 ADC I2C Low Power 24 Bit A/D Converter Sensor Module
Brand: Elecbee
SKU: EB0043218
Price: 20.26 USD
Availability: InStock

$20.26

SKU: EB0043218

Copy to clipboard

95 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$19.25

10-19 PCS

$18.23

20-99 PCS

$16.21

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

•Low Current Consumption: As Low as 120 μA (typ) in Duty-Cycle Mode

•Wide Supply Range: 2.3 V to 5.5 V

•Programmable Gain: 1 V/V to 128 V/V

•Programmable Data Rates: Up to 2 kSPS

•Up to 20-Bits Effective Resolution

•Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS with Single-Cycle Settling Digital Filter

•Two Differential or Four Single-Ended Inputs

•Dual Matched Programmable Current Sources: 10 μA to 1.5 mA

•Internal 2.048-V Reference: 5 ppm/°C (typ) Drift

•Internal 2% Accurate Oscillator

•Internal Temperature Sensor: 0.5°C (typ) Accuracy

•SPI-Compatible Interface (Mode 1)

•Package: 3.5-mm × 3.5-mm × 0.9-mm VQFN

Applications:

•Temperature Sensor Measurements:

–Thermistors

–Thermocouples

–Resistance Temperature Detectors (RTDs): 2-, 3-, or 4-Wire Types

•Resistive Bridge Sensor Measurements:

–Pressure Sensors

–Strain Gauges

–Weigh Scales

•Portable Instrumentation

•Factory Automation and Process Control

Description:

The ADS1220 is a precision, 24-bit, analog-to-digital converter (ADC) that offers many integrated features to reduce system cost and component count in applications measuring small sensor signals.

The device features two differential or four single-ended inputs through a flexible input multiplexer (MUX), a low-noise, programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, a low-side switch, and a precision temperature sensor.

The device can perform conversions at data rates up to 2000 samples-per-second (SPS) with single-cycle settling. At 20 SPS, the digital filter offers simultaneous 50-Hz and 60-Hz rejection for noisy industrial applications. The internal PGA offers gains up to 128 V/V. This PGA makes the ADS1220 ideally-suited for applications measuring small sensor signals, such as resistance temperature detectors (RTDs), thermocouples, thermistors, and resistive bridge sensors. The device supports measurements of pseudo- or fully-differential signals when using the PGA. Alternatively, the device can be configured to bypass the internal PGA while still providing high input impedance and gains up to 4 V/V, allowing for single-ended measurements.

Power consumption is as low as 120 µA when operating in duty-cycle mode with the PGA disabled. The ADS1220 is offered in a leadless VQFN-16 or a TSSOP-16 package and is specified over a temperature range of –40°C to +125°C.

Contact Sales

-1220 ADS1220 ADC I2C Low Power 24 Bit A/D Converter Sensor Module

EB0043218

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Tags: Converter

Pay with Ease

Trusted Delivery

Mobile

Description

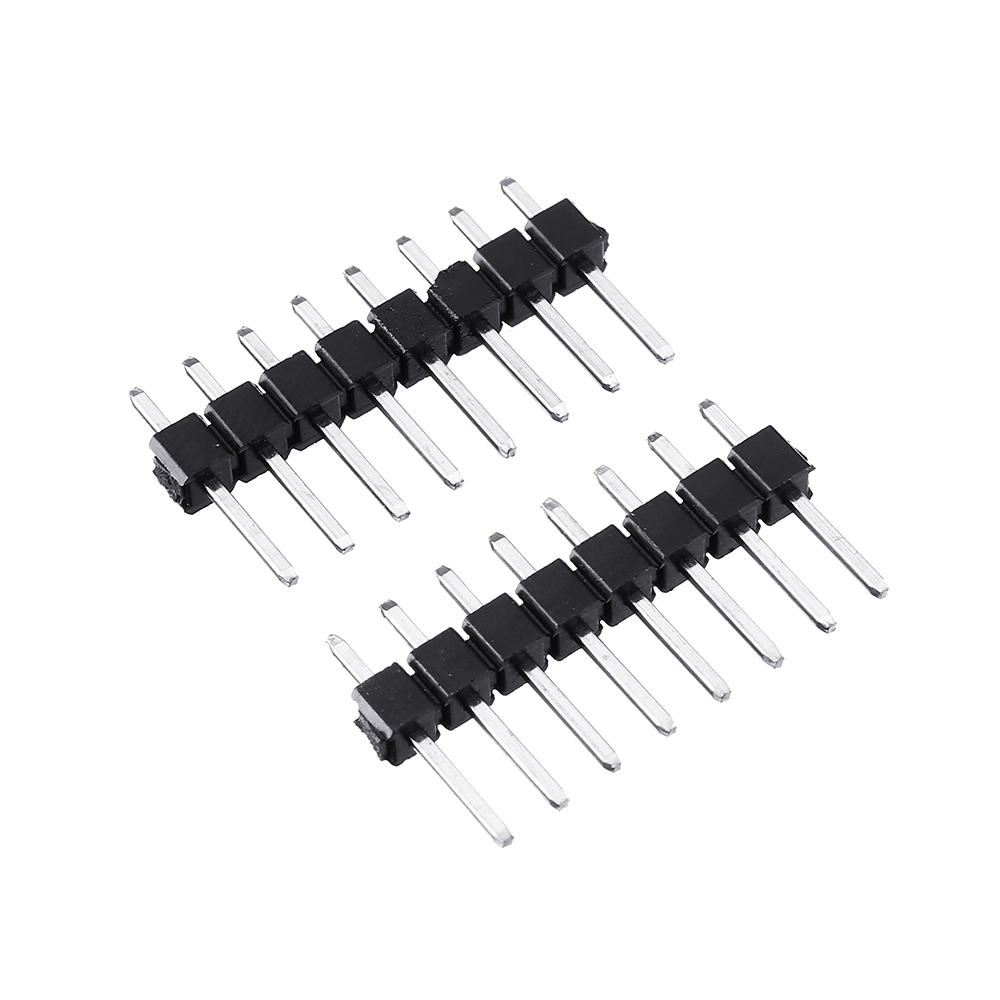

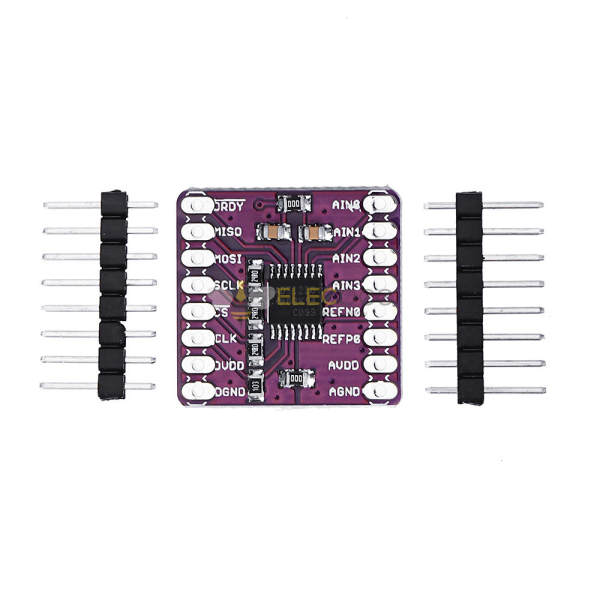

1 x CJMCU-1220

CJMCU-1220-ADS1220-ADC-I2C-Low-Power-24-Bit-AD-Converter-Sensor-Module-1470847
