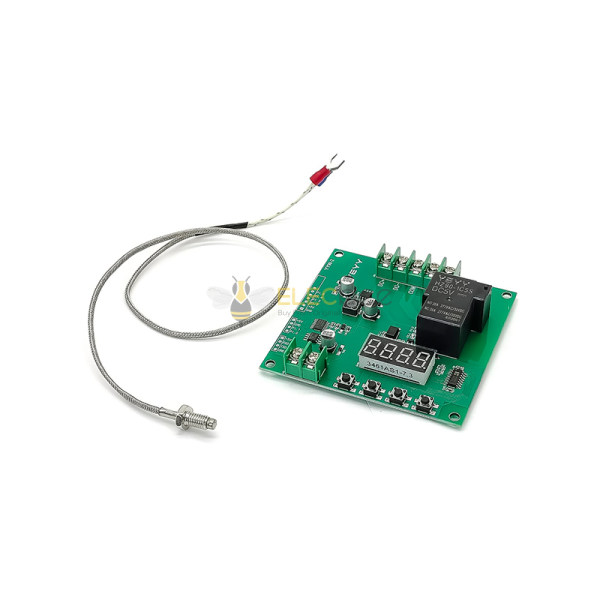

YYW-2 0-1024℃ Temperature Sensor Temperature Control Relay Detection High Temperature Serial Output with K Type Thermocouple 30A

YYW-2 0-1024℃ Temperature Sensor Temperature Control Relay Detection High Temperature Serial Output with K Type Thermocouple 30A

Name: YYW-2 0-1024℃ Temperature Sensor Temperature Control Relay Detection High Temperature Serial Output with K Type Thermocouple 30A
Brand: Elecbee
SKU: EB0043833
Price: 14.04 USD
Availability: InStock

$16,34

SKU: EB0043833

Copy to clipboard

86 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$13.34

10-19 PCS

$12.64

20-99 PCS

$11.23

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

-Add ms level delay time to prevent output oscillation and cause damage to the entire circuit.

-Can turn off the display for a long time, reducing power consumption

-Synchronous data acquisition serial output

Input supply voltage: DC 7 ~ 30V universal

Output controllable power: DC / AC within 30A

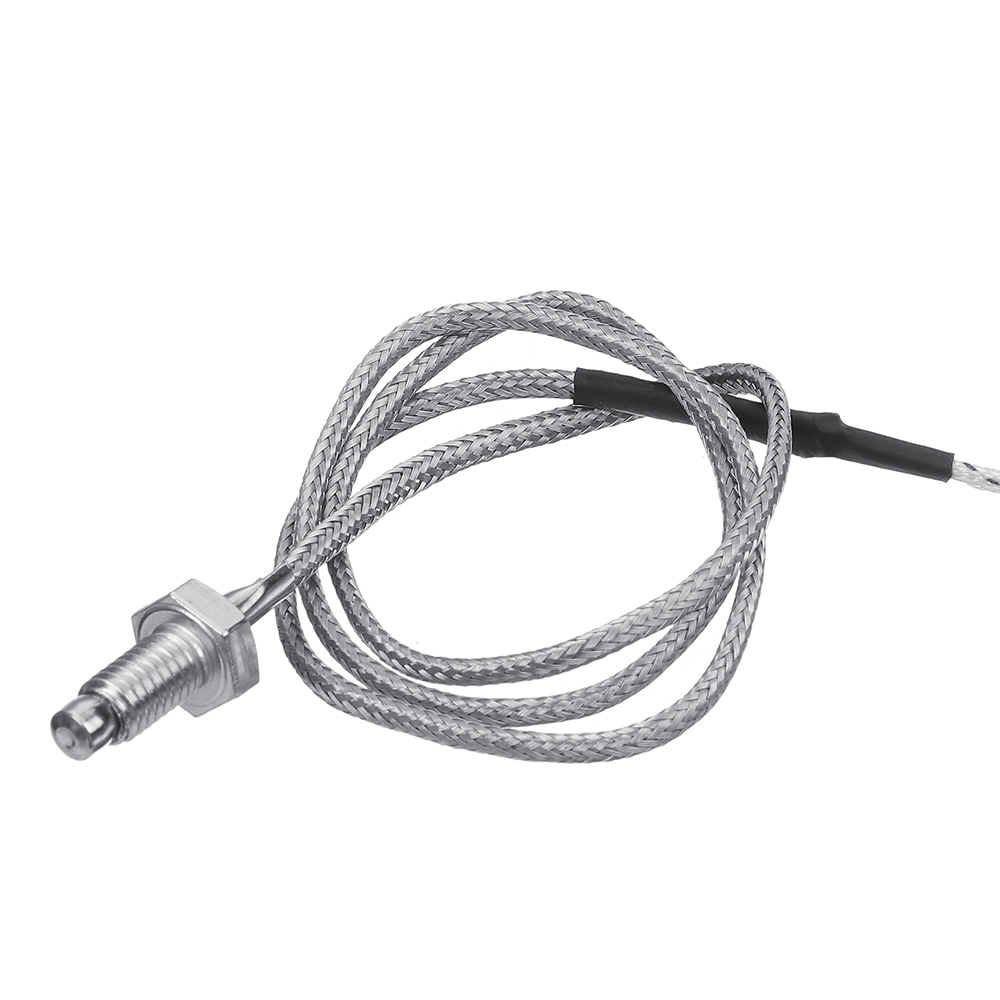

Probe model: K-type thermocouple Wire length 0.5M

Screw head specifications: M6

Resolution: 1 degree

Function Description:

(A and B are the values we can set by ourselves)

P--1: When the measurement is lower than the temperature value A, the relay is activated, and when the temperature is higher than the temperature value B, the relay is disconnected;

P--2: When the measurement is higher than the temperature value B, the relay is activated, and when the temperature is lower than the temperature value A, the relay is disconnected;

P--3: When the measured temperature is between A and B, the relay is turned off, and the relay is closed in other cases;

P--4: When the measured temperature is between A and B, the relay is closed, otherwise the relay is opened;

P--5: When the measured temperature is higher than the temperature value B, the relay is turned on, and the temperature is lower than the A relay is turned off;

P--6: When the measured temperature is higher than the temperature value A, the relay is activated; it is always activated; until the power is cut off manually

P--7: When the measured temperature is equal to A each time, the relay outputs a jog signal

Setting instructions:

Power-on indicates that the measured temperature enters the standby state;

Press K1 for the first time (it takes more than 1 second to be effective to prevent false triggering), the screen flashes: P --1: K2 plus mode, K3 minus mode

Press K1 a second time, the screen flashes: A025 means: A = 25 degrees: K2 and K3 adjust A

Press K1 a third time, the screen flashes: B035 indicates: B = 35 degrees: K2 and K3 adjust B

Press K1 for the fourth time, the display shows the measured real-time temperature indicating that it has entered the standby state;

Press K4 in standby mode to permanently turn off / on the display and switch the low power consumption mode.

Contact Sales

YYW-2 0-1024℃ Temperature Sensor Temperature Control Relay Detection High Temperature Serial Output with K Type Thermocouple 30A

EB0043833

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Tags: Temperature Sensor

Pay with Ease

Trusted Delivery

Mobile

Description

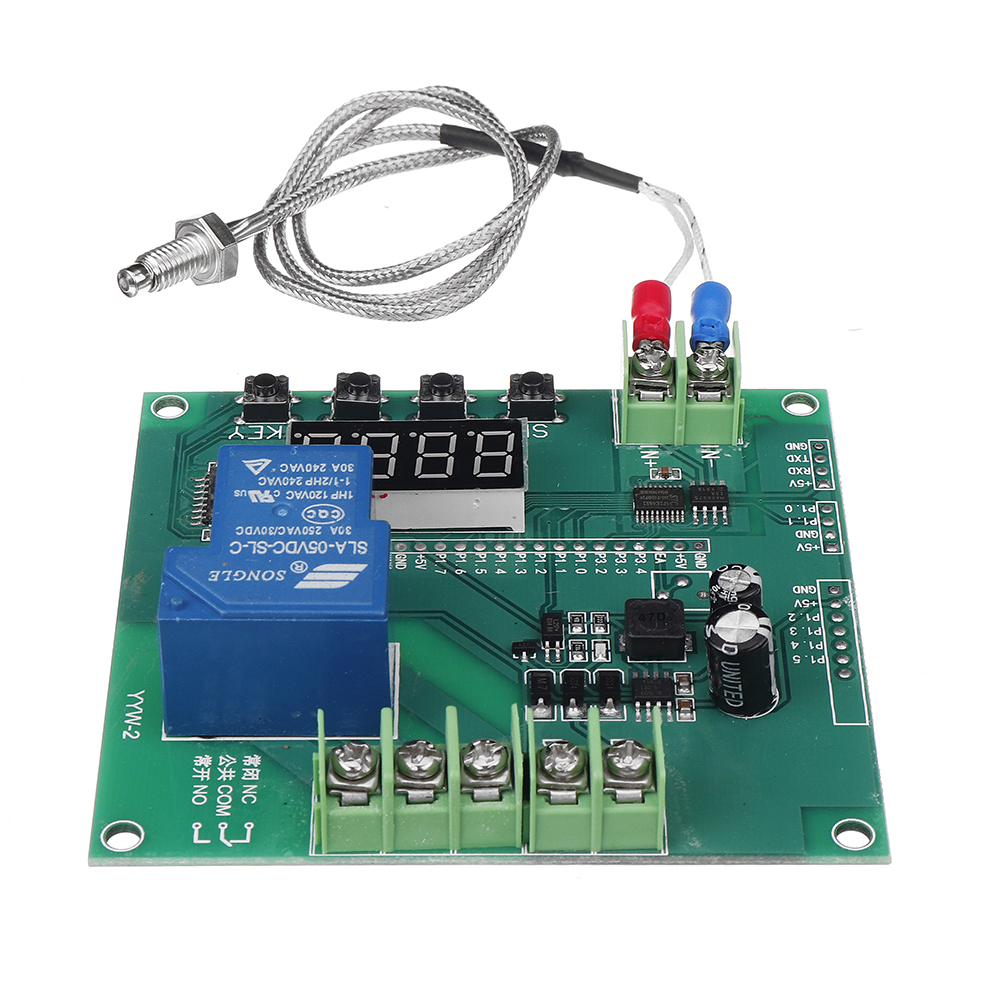

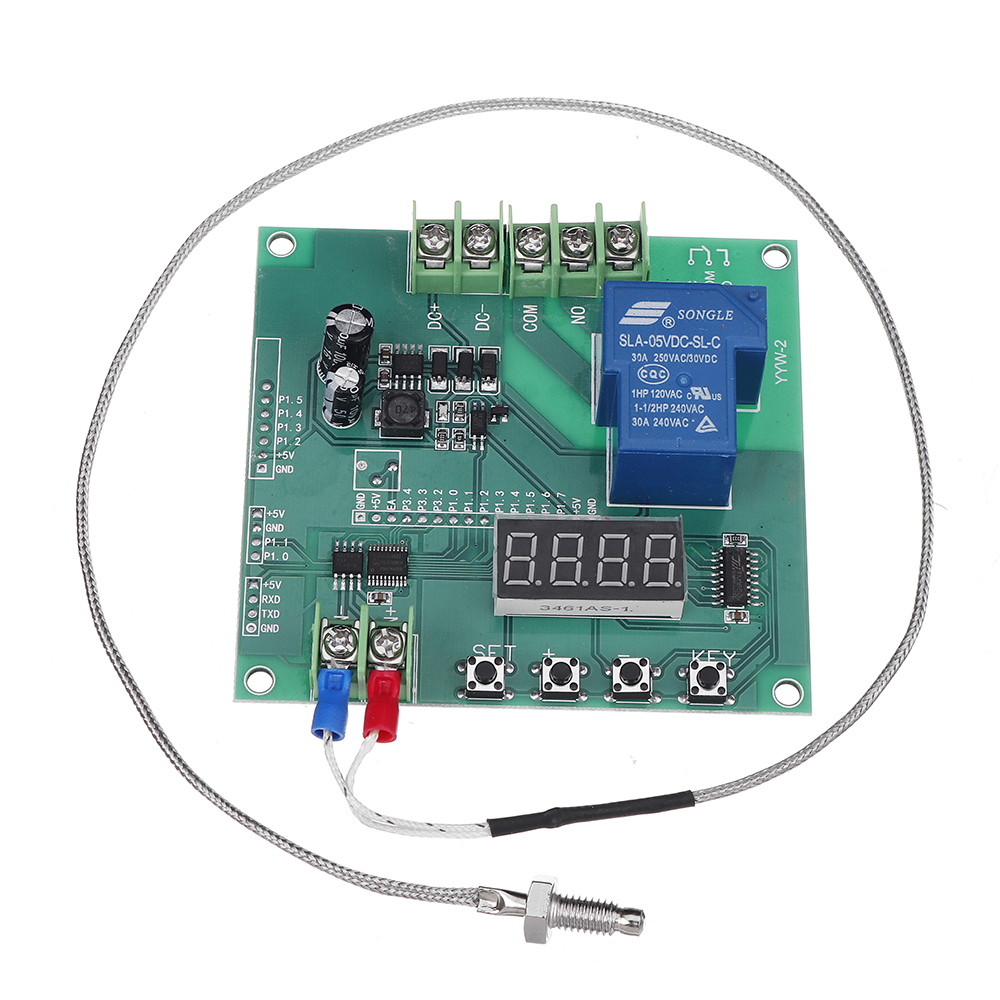

1 x YYW-2 0-1024 ℃ Temperature Sensor Module

1 x K Type Thermocouple Sensor Cable
