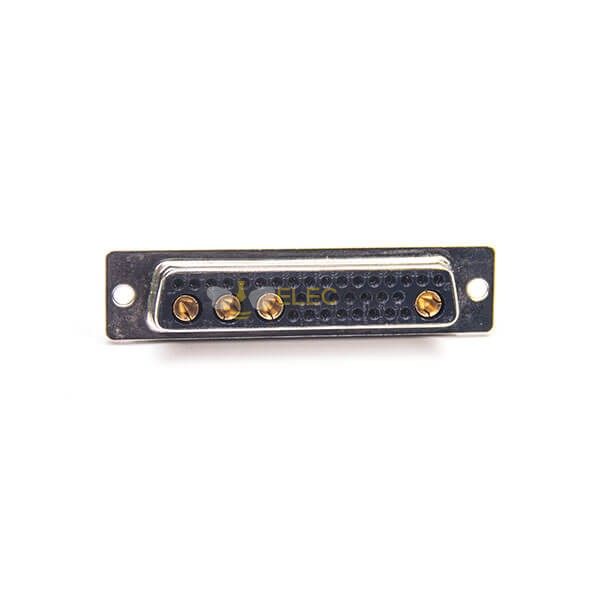

D-sub 36W4 Female Vertical Mount Connector 20pcs

D-sub 36W4 Female Vertical Mount Connector 20pcs

Name: D-sub 36W4 Female Vertical Mount Connector 20pcs
Brand: Elecbee
SKU: 20XEB-604-0055
Price: 473.22 USD
Availability: InStock

$473.22

SKU: 20XEB-604-0055

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Combo D-sub Connectors,receptacle,36W4,3 Rows,Single Port,Straight Type,Machined Pin,Gold plated,Through Hole,Panel Mount,Unthreaded,IP20,Without Filtered.
Space saving,Cost-effective;
Large variety of mounting options,RoHS Compliant;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

D-sub 36W4 Female Vertical Mount Connector 20pcs

20XEB-604-0055

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Panel Mount
Direction

Straight
Conductor Type

machined pin
filter

No
Number of Positions

36W4
Connector Model

Socket
Number of Rows

3
Number of ports

Single
Installation characteristics

Shell (Unthreaded)
Contact Plating

Gold
Protect Level

IP20
Terminal type

Through Hole

Description

Applications:

medical electronics
wireless outdoor telecom systems
industrial automation
oil exploration
printers and displays
diagnostic systems

Electrical Characteristics

Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
Frequency range: 0 -1 GHz
VSWR: 1.4 (+0.04/GHz)
Characteristic Impedance:50 Ohms
Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
Contact Resistance ≤5 milliohms

Mechanical Characteristics

Mechanical operations ：up to 500

Environmental Characteristics

Operating Temperature：67°F (-55°C) to 311°F (+155°C)
with peaks up to 356°F (180°C)

Material:

Part	Material	Finish
Body	Steel with tin	-------
Center Contact Pin	Female：bronze Male：brass	Gold
Insulator	High temperature black thermoplastic	------
