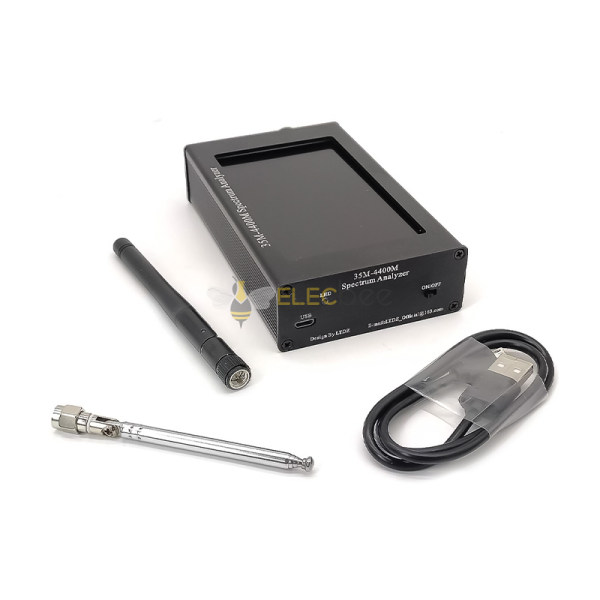

LTDZ 35M-4400M Handheld Simple Analyzer Measurement of Interphone Signal
$38.97
SKU: EB0045776
Copy to clipboard
84 Sales
0 reviews
In Stock Availability
Bulk Purchase, Auto Savings:
$104.46
10-19 PCS
$98.96
20-99 PCS
$87.97
100+ PCS
Deliver to United States
Flat Shipping Rate $10.00
Feature:
1. Using stm32f407 single-chip microcomputer (main frequency 168M) + 4.3-inch TFTLCD (480*800) color LCD screen.
2. All aluminum alloy shell + rotary encoder control.
3. USB power supply, full English display.
4. Spectrum display range: 35M-4400Mhz; input impedance: 50 ohms.
5. RBW: 100khz, 200khz, 500khz, a total of 3 gears are adjustable.
6. Screen scan points: 700 points.
7. Scanning span: 70M (100Khz), 140M (200Khz), 350M (500Khz).
8. dBm range: -80dB -----10dB (supports manual adjustment of the calibration range). There is no amplifier circuit inside the machine. If you need to measure small signals, you need an external amplifier.
9. Maximum access signal: 10dB.
10. Working mode: superheterodyne scanning spectrum analyzer, single scanning time 800ms.
11. Battery 2000mah, working current 500ma, charging current 250ma; (Battery includes, update from April 28, 2020)
12. Product specifications: 145mm*70mm*30mm. Weight: 250g.
13. Use range: walkie-talkie, toy remote control, 2.4Gwifi.
