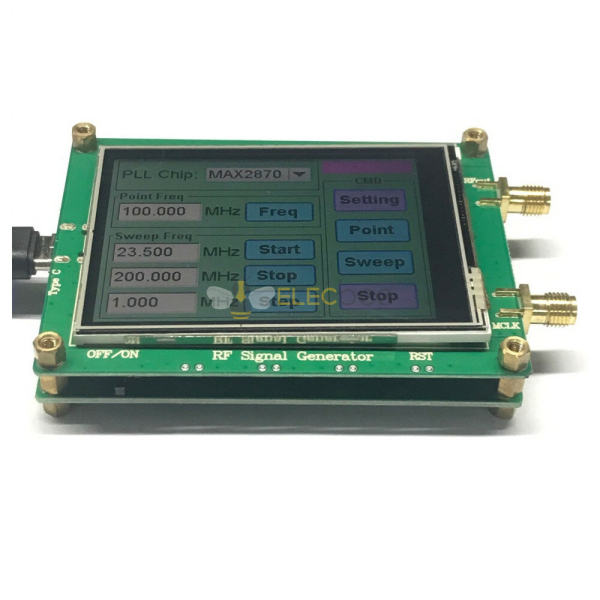

23.5M-6000M 6G Radio Frequency 0.5PPM High Stability Low Noise Signal Source Full Touch Screen
1. Module power supply TYPE-C: 5V@0.2A
2. Output and external clock interface: SMA-K (inner screw inner hole)
3. The onboard default high-precision 25MHz 0.5ppm TCXO (can also be replaced or connected to an external clock)
4. Output frequency range: The fundamental frequency of the internal VCO is 3-6GHz, and the frequency below 3GHz is obtained from the fundamental frequency division. Full touch screen frequency input
5. Output amplitude: -4~5dBm, 4 levels of touch screen control
6. Output frequency mode: point frequency, sweep frequency optional touch screen control
- Description
1 x Low Noise Signal Source
Overview:
MAX2870 is an ultra-wideband phase-locked loop (PLL), integrated voltage-controlled oscillator (VCO), and can work in integer and fractional-N modes. With an external reference clock oscillator and loop filter, the MAX2870 can form a high-performance frequency synthesizer to generate a clock in the frequency range of 23.5MHz to 6.0GHz, and can maintain excellent phase noise and spurious indicators. The internal multiple integrated VCO covering the 3000MHz to 6000MHz range and the 1-128 output divider are used to realize the clock output in an ultra-wide frequency range. The device provides dual-channel differential output drivers, which can be individually set to provide output power from -4dBm to +5dBm, and both outputs can be muted by software or hardware control.
MAX2870 is controlled by a 3-wire serial port and is compatible with 1.8V control logic. The device is packaged in a lead-free, RoHS-compliant 5mm x 5mm, 32-pin TQFN package and operates over an extended temperature range of -40°C to +85°C.
Application:
1. Wireless infrastructure
2. Test and measurement
3. Satellite communications
4. Wireless LAN/CATV
5. Military and aviation/aerospace
6. PMAR/LMAR/public safety radio
7. Clock generator
Parameter:
1. Integer/fractional N frequency division mode
2. Manually or automatically select VCO
3. 23.5MHz to 6000MHz base frequency VCO
4. Output binary buffer/driver, used to extend the frequency range 2 1/2 /4 /8/16/32 /64/128
2 23.5MHz to 6000MHz
5. High-performance PFD: In 2 integer-N frequency division mode, 105MHz/2 fractional-N frequency division mode, 50MHz
6. Reference clock frequency up to 200MHz
7. +3.0V to +3.6V power supply
8. Two programmable amplitude outputs -4dBm to +5dBm
9. Analog and digital lock detection indication
10. Hardware and software shutdown control
11. Compatible with 1.8V control logic
