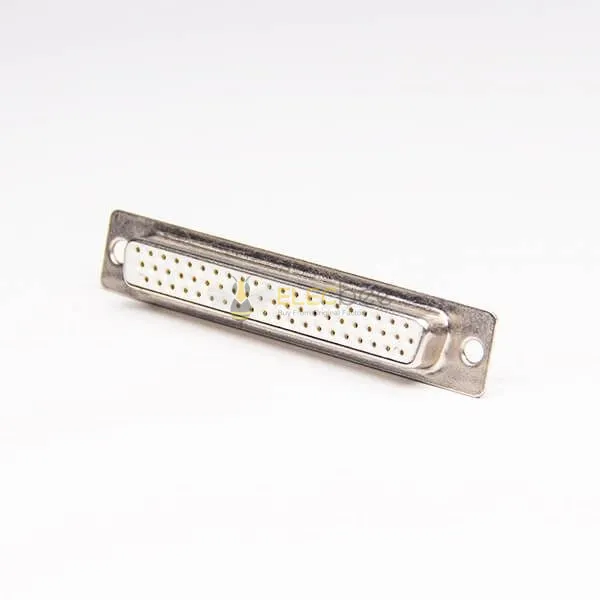

62 Pin High Density D sub Connector Female 180 Degree Solder Type White

62 Pin High Density D sub Connector Female 180 Degree Solder Type White

Name: 62 Pin High Density D sub Connector Female 180 Degree Solder Type White
Brand: Elecbee
SKU: EB-602-0042
Price: 8.90 USD
Availability: InStock
Rating: 95 / 20 (20 reviews)

$8.90

SKU: EB-602-0042

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$8.46

10-19 PCS

$8.01

20-99 PCS

$7.12

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

62 Pin High Density D sub Connector Female 180 Degree Solder Type White

EB-602-0042

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
direction

Straight
Terminal type

Solder Cup
Continuous plating

machined pin
filter

No
Number of Positions

62 pin
Connector Type

Socket
Number of Rows

3
Port number

Single
Installation characteristics

Shell (Unthreaded)
waterproof level

Not Waterproof
Continuous plating

Gold

Description

Electrical Characteristics

Contact resistance :10 mOhm
Current rating signal:3 A
Working voltage:60 V
Dielectric with standing voltage signal:1000 V
Insulation resistance: 5000mΩ min

Mechanical Characteristics

Extraction force:<50 N
Insertion force：<50 N
Mating cycles ：50

Environmental Characteristics

Operating Temperature：-55°C~ + 105°C

Material:

Part	Material	Finish
Body	SPCC steel	Tin
Center Contact Pin	Copper alloy	------
Insulator	Glass Filled Thermoplastic (UL94V-0)	Black/White
