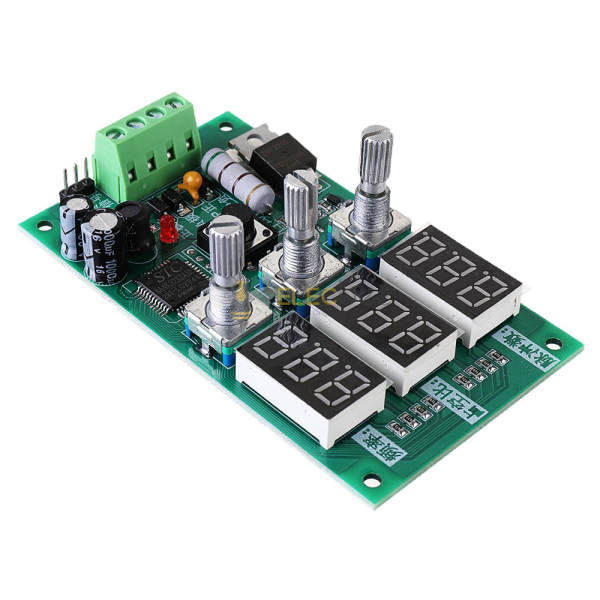

YF-22 PWM Dimming Speed Controller Module Frequency Duty Ratio Pulse Adjustable Square Wave

$23.29
SKU: 1626237
Copy to clipboard
87 Sales
0 reviews
In Stock Availability
Bulk Purchase, Auto Savings:
$22.13
10-19 PCS
$20.96
20-99 PCS
$18.63
100+ PCS
Deliver to United States
Flat Shipping Rate $10.00
- +
-  Power supply: DC 5V- 24V
- Product Function: Give a signal; Pulse waveform of setting times can be output; When the number is set to zero; Sustainable output of PWM
- Product Usage: can be used for waveform generator; drive DC motor; speed regulation; dimming; frequency modulation; regulating the strength of various valves; driving stepper motor to control angle, distance and speed, etc
- Frequency range: 1HZ~100KHZ, adjusted by encoder knob
- Duty cycle range: 0-100%, 0.1% adjustable; adjustable by encoder knob
- Pulse number range: 0-999000; regulated by encoder knob; when the number is set to zero; sustainable output PWM
- PWM Amplitude = Input Voltage
- Output PWM drive capability: Output is driven by high-power NPN IRF3205; Driving current can reach 10 A without heat dissipation.
- Decimal point description:
Frequency: There are decimal points in KHZ; no decimal points in HZ.
Pulse Number: There are decimal points denoting units K; there are no decimal points denoting units K
