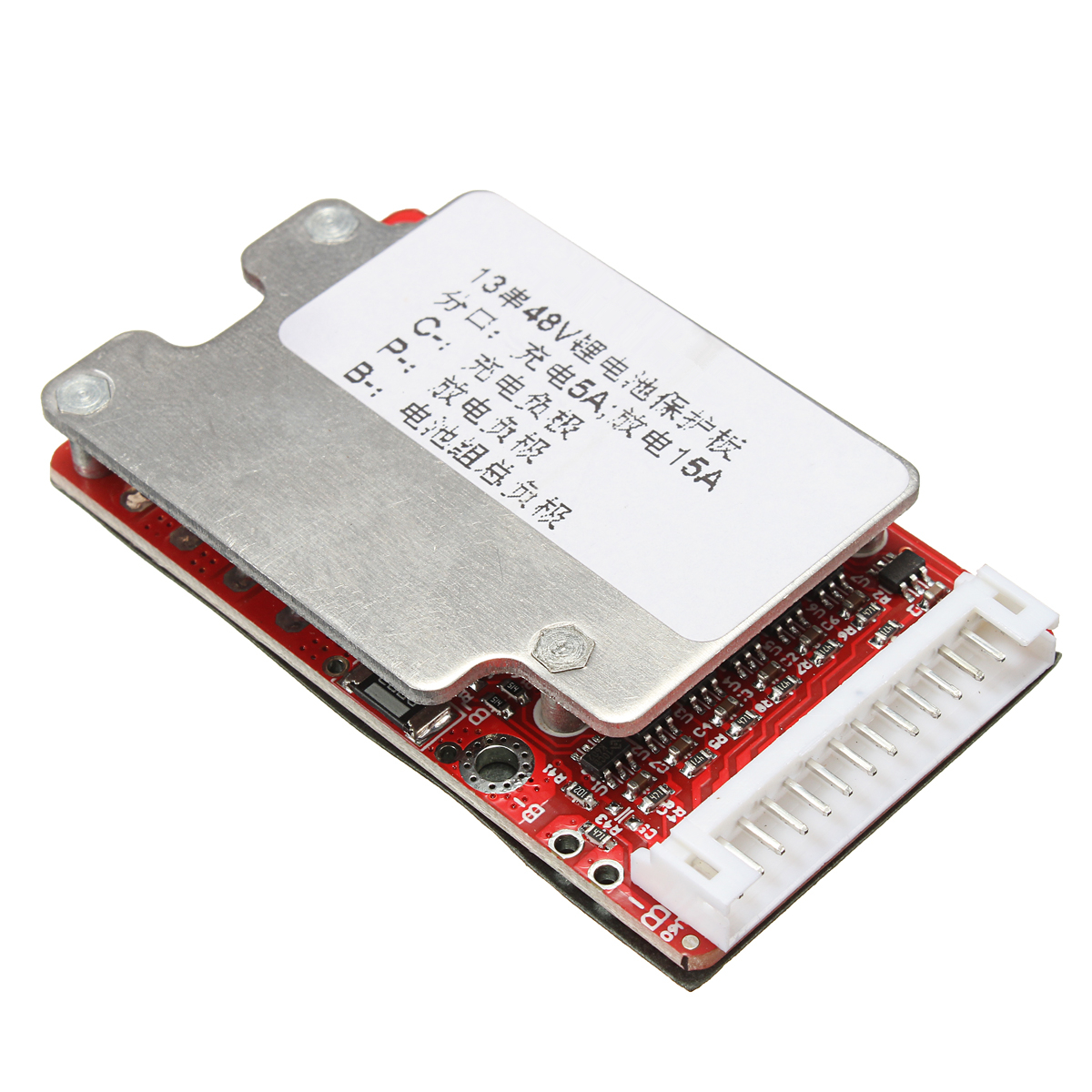

48V 13S 15A 3.7V Lithium ion Li-ion Li-Po Battery Protection Board BMS PCB
Product Features:

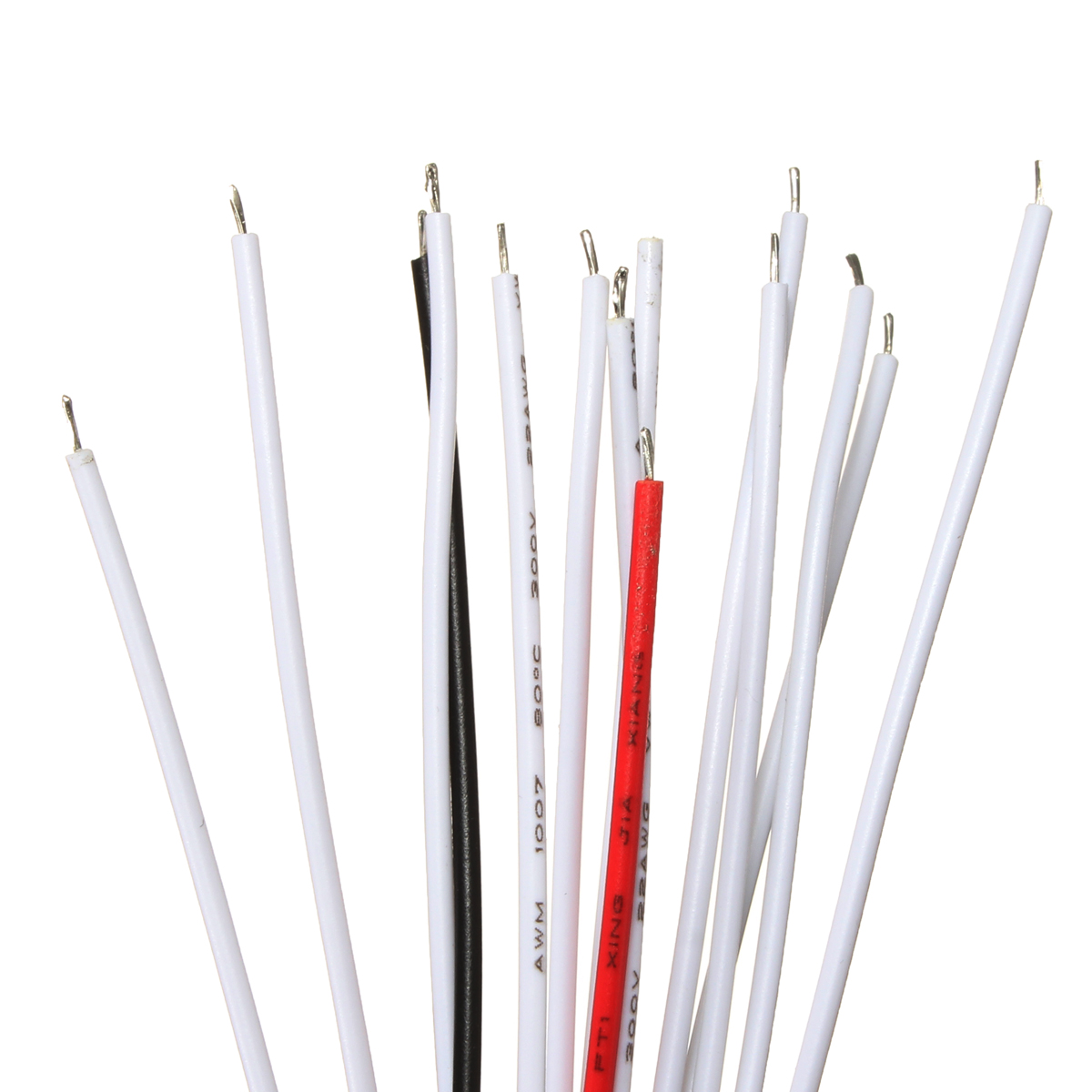

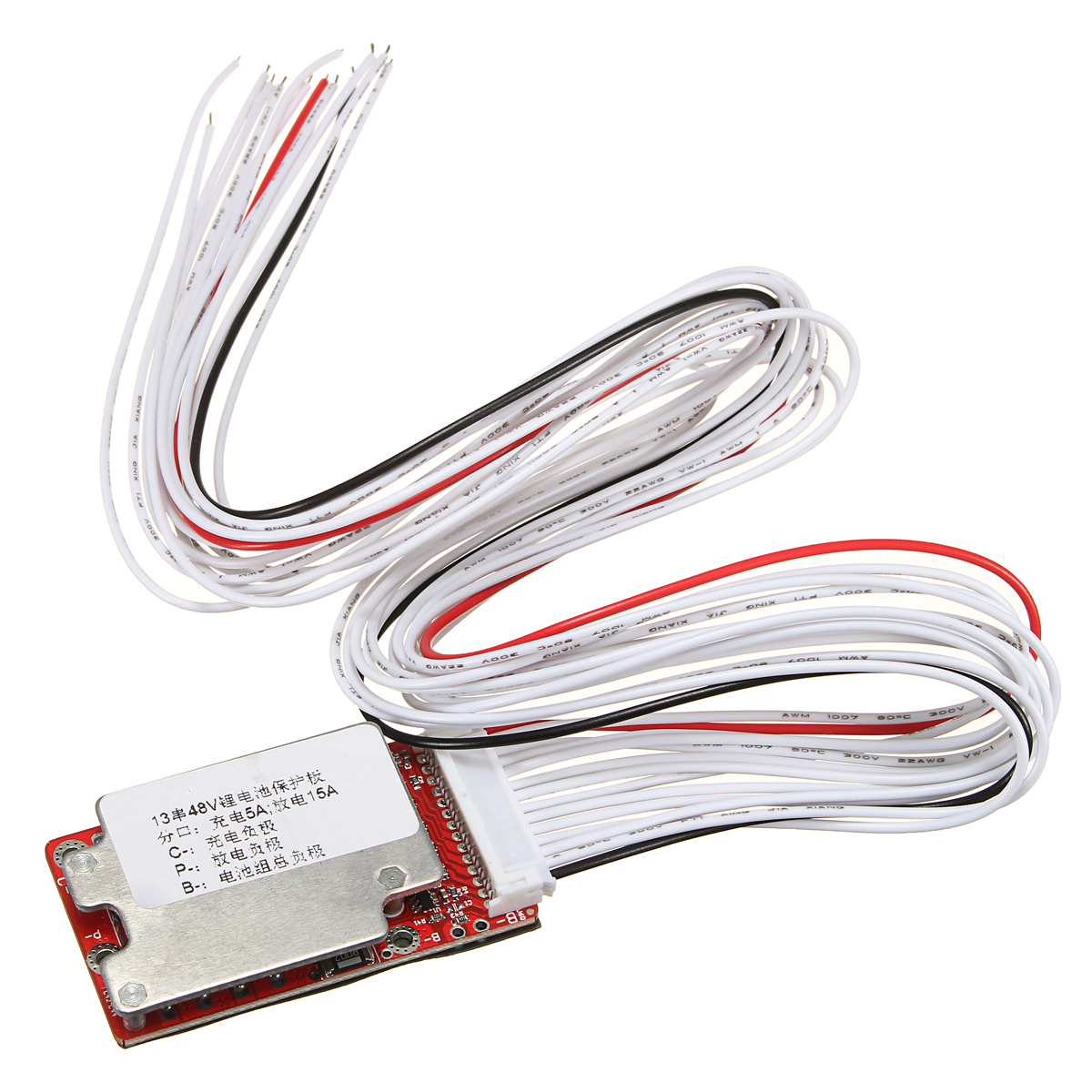

-With 14-pin Cable, length is 500mm
-With high wear resistance and heat resistance
-Overcharge protection, over discharge protection
-Over current protection, short circuit protection
| Project | Details | Standard |
| Overcharge protection | Single overcharge detection voltage | 4.25V±0.05V |
| Single overcharge release voltage | 4.10V±0.05V | |
| Charging protection | Rated charging current | <=5A |
| Charging protection current | / | |
| Single cell over-discharge detection voltage | 2.50V±0.05V | |
| Over discharge protection | Single-substrate release voltage | 3.00V ± 0.05V |
| Rated discharge current | 15A | |
| Discharge protection current | 45±5A | |
| Short circuit protection | With or without short circuit protection | Have |
| Short circuit protection recovery condition | Disconnect load | |
| Internal resistance | B-, P-conducting internal resistance | <=25mΩ |
| Low power consumption | Self-consumption | <30|JIA |
| (LxWxH) size | Size | 60 * 34 * 10 mm |

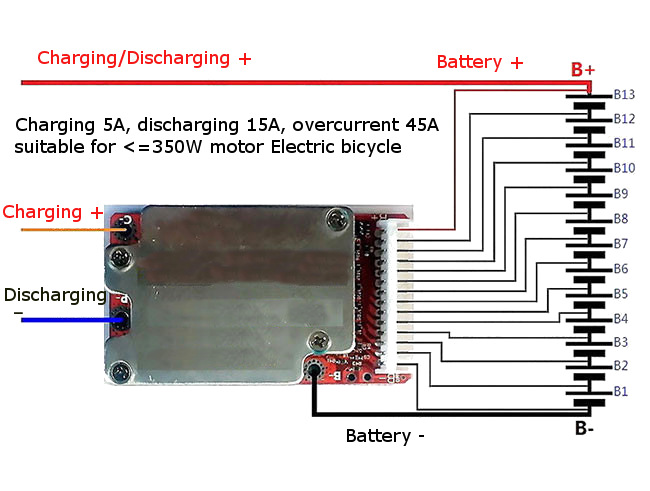

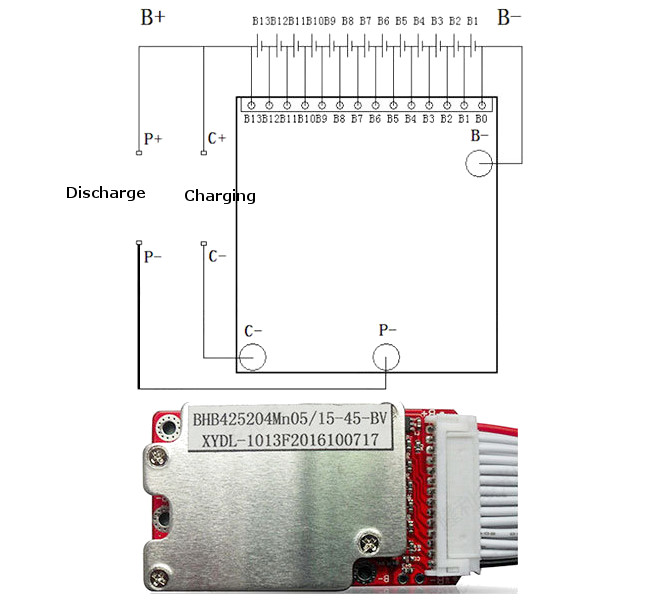

Port description:
| B+ | Battery pack positive | B- | Battery pack negative |
| C+ | Positive terminal of the charging terminal (positive battery pack) | C- | Charging terminal |
| P+ | Discharge terminal positive electrode (positive battery pack) | P- | Discharge terminal |
Specifications:
Rated discharge current: 15A
Color: Silver & Green & Black
Size: About 60*34*10mm
Wire Length: About 50cm
- Description

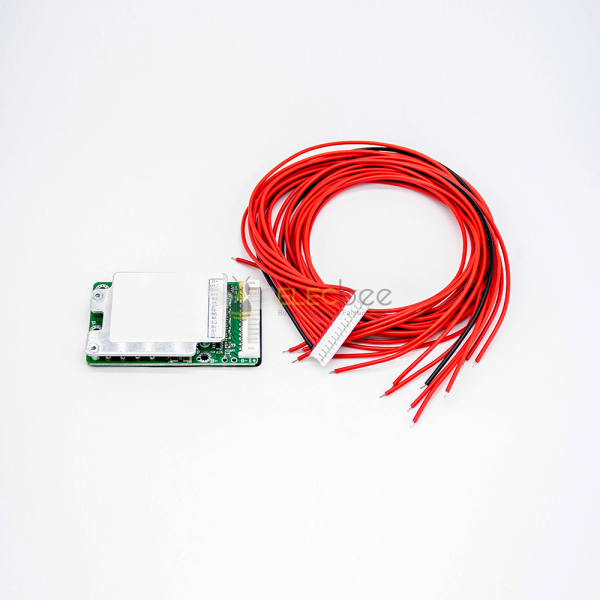

Package includes:
1 x 13S Lithium Battery Protection Board
1 x Cable
