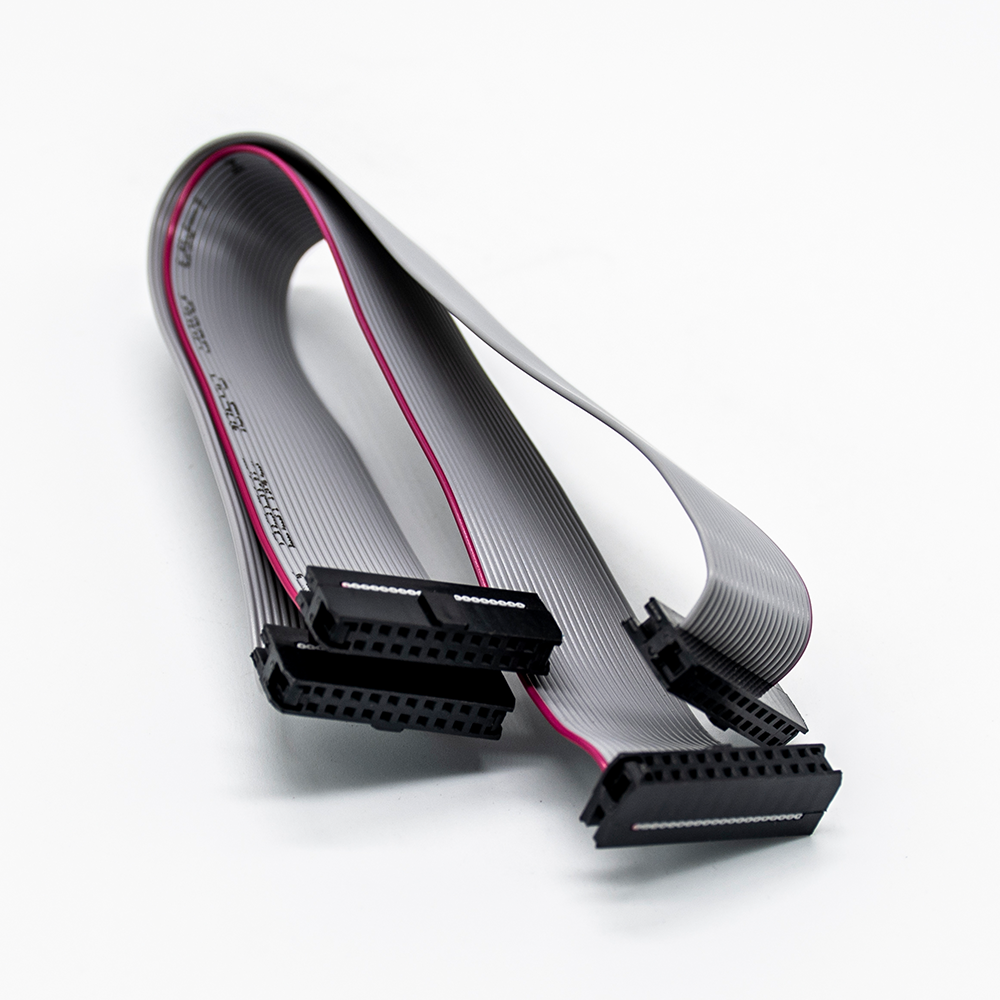

2mm Pitch 2x10 Pin 20 Pin 20 Wire IDC Flat Ribbon Cable Length 20CM
- Specification
-
Product Attribute
Attribute Value
Search
-
Connector A Gender
Female
-
Connector A Direction
Straight
-
Connector B Gender
Female
-
Connector B Direction
Straight
-
Connector A Type
IDT
-
Connector B Type
IDC
- Description
Electrical Characteristics
- IDC Connector Pitch:2.54mm
- Cable Pitch:1.27mm
- Cable Length: about 91CM
- Number of Wire: 26Wires
- Conductor: 7/0.10mm(Tin Plated Copper)
- Two 2.54mm pitch 2x13Pin female IDC connectors on each end.
- Withstand voltage 2KV 10mA/
- Conductor resistance ≤ 237 ohm / RM ↓
- Insulation resistance ≥100m ohm/RM↑
- Capacitor 40PF/M
- Impedance 100 ohms
- Working temperature: -40 ° C ~ +105 ° C
Mechanical Characteristics
- Engagement Force：15 N (3.37 lb) typical
- Disengagement Force：10 N (2.25 lb) typical
- Retention Force of Interface：550 N (123.65 lb) min
- Connector Durability：500 mating cycles min
- These characteristics are typical and may not apply to all connectors.
Environmental Characteristics
- Temperature Range：-65°C to +165°C
