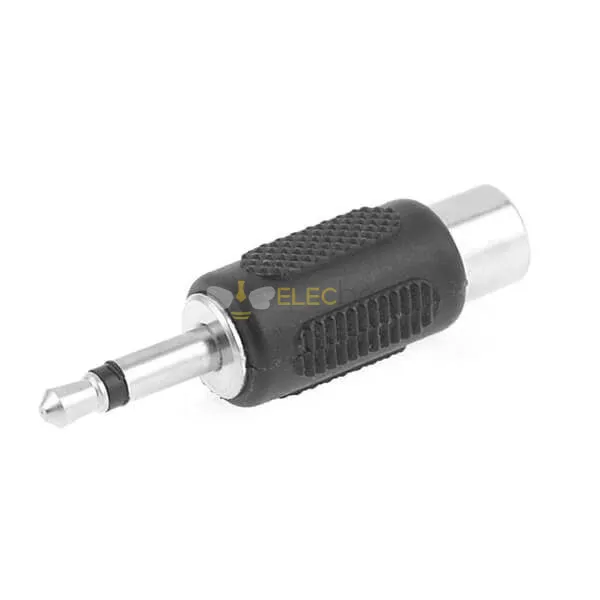

RCA Connector to Audio Jack 3.5mm DC Male Plug to RCA Female Socket AV Video Connector Adapter
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Free Hanging
-
Shell Feature
Straight
-
Connector A Type
RCA
-
Connector A Gender
Male
-
Connector B Type
RCA
-
Connector B Gender
Female
-
Impedance
75 Ω
-
code
None
- Description
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~18 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
- 750 V rms min. for RG316, RG402
- 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405
- 375 V rms max. for RG316, RG402
- 170 V rms max. for RG178
- Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range: -65°C ~ +165°C
- Vibration: MIL-STD-202 Method204
- Corrosion resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Au:1-3u" |
| Center Contact Pin | Brass | Au:5u" |
| Insulator | TEFLON | None |
