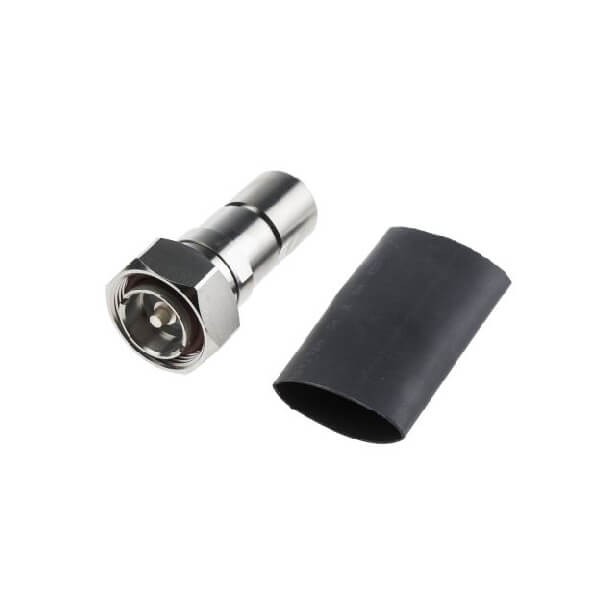

7/16 Connector Plug 50Ω Cable Mount Clamp Termination
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
Cable
-
Terminal type
Solder Type
-
Gender
Male
-
direction
Straight
-
Polarity
Standard
-
Function
Other
-
Coating
Nickel Plating
-
Installation characteristics
None
-
Impedance
50 Ω
-
Outer conductor connection
Clamp
- Description
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~7 GHz
- VSWR: 1.3 max
- Dielectric Withstanding Voltage: 4000 V rms
- Voltage Rating: ≦2700 V rms
- Insultation Resistance ≧ 5000 mΩ
Mechanical Characteristics
- Coupling: M29 x 1.5 Thread
- Durability(mating) ≧ 500 cycles
Environmental Characteristics
- Environmental Characteristics: -40°C ~ +155°C
