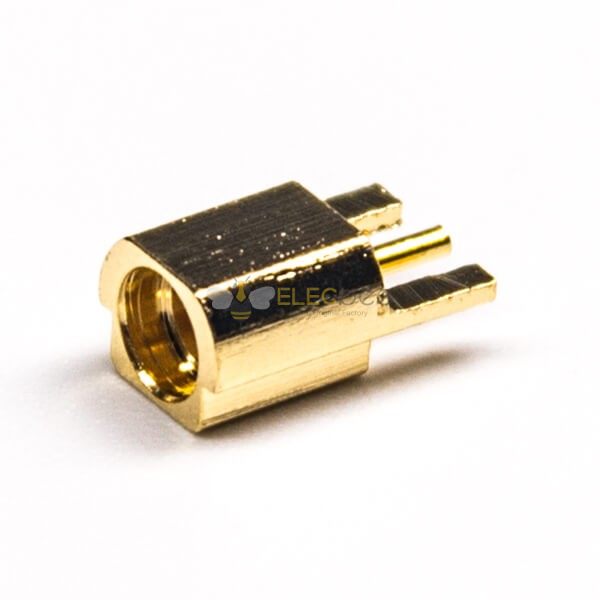

Female MMCX Connector Offset Type 180 Degree for PCB Mount
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
Terminal type
Solder Type
-
Gender
Female
-
direction
Straight
-
Polarity
Standard
-
Function
Other
-
Coating
Gold Plating
-
Impedance
75 Ω
-
Body Material
Cooper Alloy
-
Installation characteristics
Surface Mount / Offset Type
-
Outer conductor connection
Without
- Description
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~6 Ghz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 1000 V rms
- Working Voltage: 335 V rms
- Center Contact Resistance ≦ 5.0 mΩ (Milliohms max.)
- Outer Contact Resistance 1.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 1000 mΩ
Mechanical Characteristics
- Coupling: Snap-on/Snap-off
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: Teflon -65°C ~ +155°C
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Gold Plated |
| Center Contact Pin | Be-Cu | Gold Plated |
| Insulator | PTFE | ------ |
