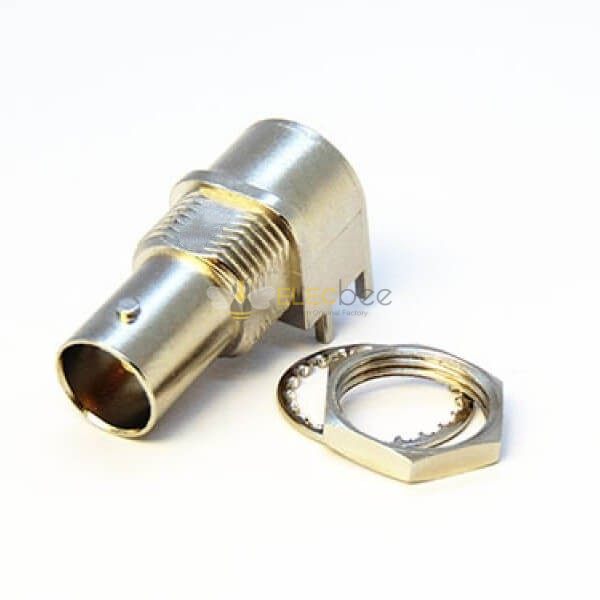

HD SDI BNC Female Connector 90 Degree Front Bulkbead for PCB Mount Through Hole
Product features:
- BNC Connector,Female/Jack, Right Angle/90°,Through Hole,Bulkhead,75Ohm,Nickel Plating
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
Panel Mount / Cable
-
Terminal type
Solder Type
-
Installation characteristics
Bulkhead / Through Hole
-
Gender
Female
-
Function
Other
-
direction
Right Angle
-
Polarity
Standard
-
Coating
Nickel Plating
-
Impedance
50Ω/75Ω
-
Outer conductor connection
Without
- Description
Electrical Characteristics
- Impedance：50ohm
- Frequency Range: 0~1 GHz for 75 ohm
- VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧5 × 103 mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: bayonet
- Contact Retention: 6 lbs min.
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Method 204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Nickel(Ni) |
| Center Contact Pin | Brass | Gold |
| Insulator | Teflon | White |
