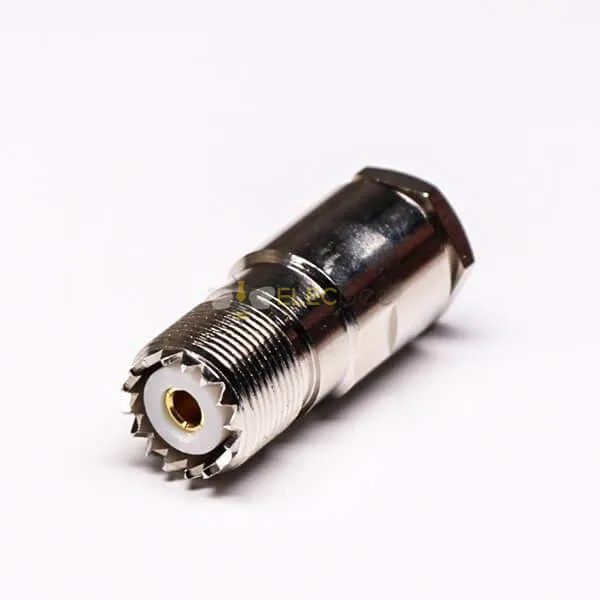

UHF Cable Female Connector 180° Coaxial with Clamp Type
Features:
- UHF Connector, Female, Straight/180°, Clamp Type, Cable;
- Designed for low frequency systems from 0.6-300MHz;
- Threaded coupling mechanism is easy for assembly with high durability;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
Cable
-
Terminal type
Solder Type
-
Installation characteristics
None
-
Gender
Female
-
Function
Other
-
direction
Straight
-
Polarity
Standard
-
Coating
Nickel Plating
-
Impedance
50 Ω
-
Outer conductor connection
Clamp
- Description
Applications:
- Antennas, Military, Public Address Systems and Low-frequency applications
Electrical Characteristics
- Impedance：Non-constant
- Frequency Range: 0~300MHz
- voltage Rating: 500 volts peak
Mechanical Characteristics
- Coupling: 5/8-24 threaded coupling
- Cable Affixment: Braid Solder, Set screw, clamp and crimp
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range:
Mica-filled phenolic insulators: -55°C ~ +149°C
Copolymer of styrene and polystyrene: -55°C ~ +85°C
TFE insulators: -65°C ~ +165°C - Weatherproof: Except as noted, all UHF series are non-weatherproof
Material:
| Part | Material | Finish |
| Housing | Brass | Ni |
| Contact | Phosphor Bronze | Au |
