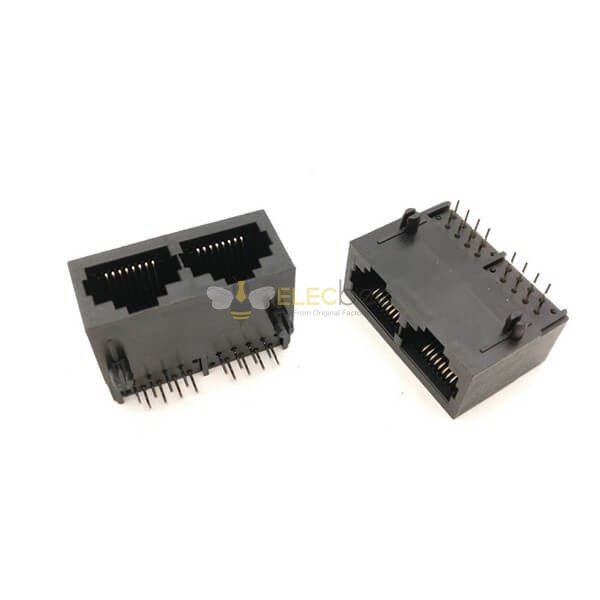

Dual RJ45 LAN Modular Network Connector 8P8C 1x2 All Plastics 90 Degree Unshield without Led Female 20pcs
Features:
- RJ45 Connector,Jack,8P8C,2 Ports,1*2,Single Row,Angled(90°),Gold Plated,Through Hole,PCB Mount,Unshield,Without Led,Without Filtered,Without POE,Not Waterproof
- Comprehensive range for all application needs;
- Stackable side by side design;
- Supports wide variety of low-speed networking applications;
- Supports high-speed Gigabit Ethernet applications;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
Direction
Right Angle
-
Shielding
Unshielded
-
Number of contacts
8p8c
-
LED
No
-
filter
No
-
Connector Model
Socket
-
Number of ports
Dual
-
Protect Level
Not Waterproof
-
Contact Plating
Gold
-
Terminal type
Through Hole
-
Number of Rows
1×2
- Description
Applications:
- Routers
- Ethernet switches
- ATMs
- Point of sales terminals
- Vending machines
- Set-top boxes
- Technology analysis equipment
- Laptops
- Phone line security systems
Electrical Characteristics
- Current rating: 3A continuous
- Insulation resistance: 500MΩ min.
- Dielectric withstanding voltage: 1500V min.
- Voltage rating 1000V rms
Mechanical Characteristics
- Mating force: 5N to 20N
- Unmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature: -40°C~ + 120°C
Material:
| Part | Material | Finish |
| Housing | Nylon 46 glass filled | UL94V-0 |
| Shield | Copper Alloy | Nickel Plating |
| Contact | Copper Alloy | Au over nickel |
