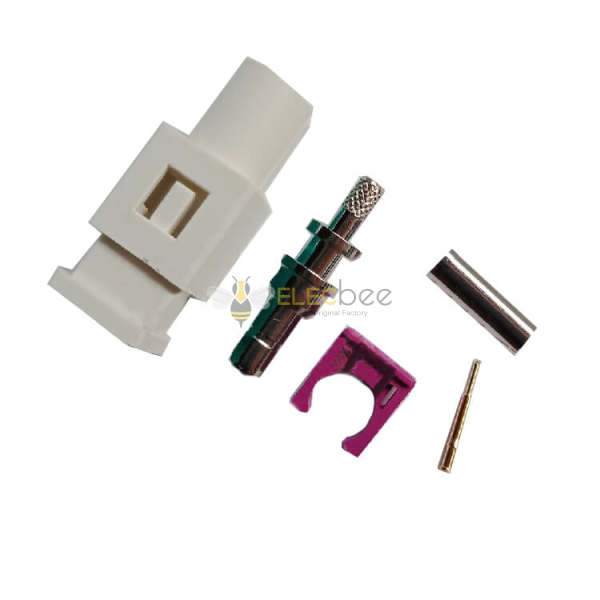

Fakra B Male White Crimp Solder Connector for Car Antenna RG58 Cable
- Specification
-
Product Attribute
Attribute Value
Search
-
Material
Cooper
-
Installation method
Cable
-
Terminal type
Crimp Type / Solder Type
-
Installation characteristics
None
-
Gender
Male
-
Function
Other
-
direction
Straight
-
Polarity
Standard
-
Coating
Nickel Plating
-
Impedance
50 Ω
-
Outer conductor connection
Without
- Description
Electrical Characteristics：
- Impedance：50 Ohm
- Frequency Range：0 to 6 GHz
- Voltage Rating：225 VRMS
- Dielectric Withstanding Voltage：1000 Volts
- Insulation Resistance：5000 MΩ min
Mechanical Characteristics：
- Engagement Force：20 N max.
- Disengagement Force：10 N min.
- Connector Durability：500 mating and unmating cycles min
Environmental Characteristics：
- Temperature Range：-65⁰C to +165⁰C
Material:
| Part | Material | Finish |
| Body | Brass | Nickel |
| Center Contact Pin | Phosphor | Gold |
| Insulator | TEFLON |
- RF Connector,Fakra Connector,Male,Straight,50 Ohm,Crimp,Solder,for Cable,RG58,Brass,Nickel plating;
- FAKRA rf coax circular connector, designed for automotive industry With secondary locking structure；
- 14 different mechanical and color codes discrimination and misplaced structure to prevent mismatch；
- Safe and fully automatic assembly system to ensure the competitive price and high efficiency Achieve the ROHS standard;
- Widely used in car navigation systems, remote control systems, car TV, audio equipment, antenna and so on;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Appliance：
- WLAN
- GPS
- PC/LAN
- Automotive
- Base Station
- Head End Equipment
- Radios
- Wireless/ Networks Antenna
- Instrumentation
- Telecom
