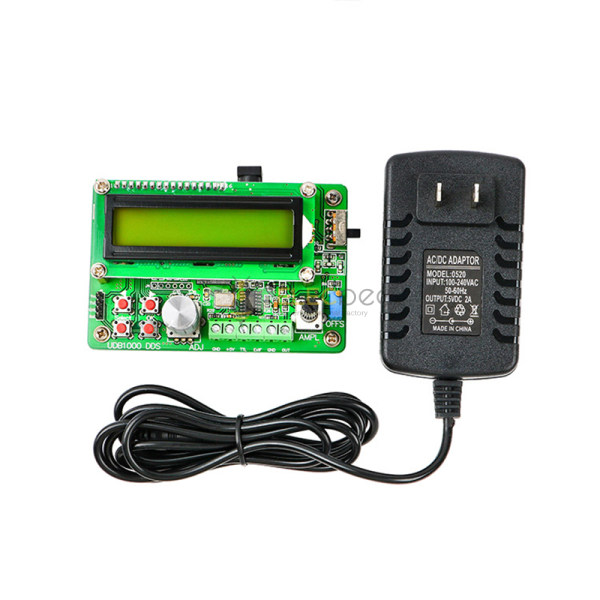

UDB1008S 8MHz with Frequency Sweep Function DDS Signal Source Signal Generator US Plug

UDB1008S 8MHz with Frequency Sweep Function DDS Signal Source Signal Generator US Plug

Name: UDB1008S 8MHz with Frequency Sweep Function DDS Signal Source Signal Generator US Plug
Brand: Elecbee
SKU: EB-UDB1008S-C
Price: 54.37 USD
Availability: InStock
Rating: 141 / 29 (29 reviews)

$54.37

SKU: EB-UDB1008S-C

Copy to clipboard

92 Sales

29 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$51.65

10-19 PCS

$48.93

20-99 PCS

$43.50

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

UDB1008S 8MHz with Frequency Sweep Function DDS Signal Source Signal Generator US Plug

EB-UDB1008S-C

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Tags: Signal Generator

Pay with Ease

Trusted Delivery

Mobile

Description

UDB1008S Function Signal Generator Source Frequency Counter DDS Module Wave 8MHz

Specification:

1.Frequency range: 8MHz

2.Resolution: 0.01Hz

3.Output waveforms: Sine wave, Square wave and Triangle wave

4.Output amplitude: ≥10Vp-p(signal output,no load)

5.Output impedance: 50ω±10%(signal output)

6.DC offset: ±2.5V(no load)

7.Display: LCD1602

8.Frequency Stability: ±1×10-6

9.Frequency accuracy: ±5×10-6

10.Sine wave distortion: ≤0.8% (reference frequency is 1kHz)

11.Triangle linearity: ≥98% (0.01Hz~10kHz)

12.Rise and fall time of square wave: ≤100ns

13.Square Wave Duty range: 1%~99%

14.Amplitude: >3Vp-p

15.Fan Out: >20 TTL loads

16.Counter Range: 0-4294967295

17.Frequency Meter Range: 1Hz~60MHz

18.Input Voltage Range: 0.5Vp-p~20Vp-p

19.Save and Load Parameter: 0-9(0 is default load)

Technical support:

We have the manual for this board,please contact us for it.Thanks.

Feature:

Signal Generator Source Module use DDS technology and FPGA design with the characters of high stability and low distortion ect., It’s the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research.

Package:

1x UDB1008S Function Signal Generator Source Frequency Counter DDS Module Wave 8MHz
