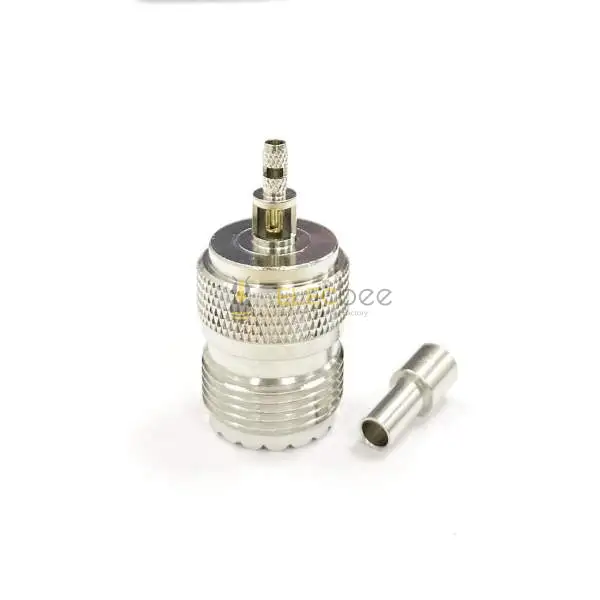

UHF Female Jack Crimp Nickel RF Connector for Cable RG316/RG174
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
Cable
-
Gender
Female
-
Function
Other
-
direction
Straight
-
Polarity
Standard
-
Coating
Nickel Plating
-
Impedance
50 Ω
-
Wiring Type
Press-fit
- Description
Electrical Characteristics
- Impedance：Non-constant
- Frequency Range: 0~300MHz
- voltage Rating: 500 volts peak
Mechanical Characteristics
- Coupling: 5/8-24 threaded coupling
- Cable Affixment: Braid Solder, Set screw, clamp and crimp
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range:
Mica-filled phenolic insulators: -55°C ~ +149°C
Copolymer of styrene and polystyrene: -55°C ~ +85°C
TFE insulators: -65°C ~ +165°C - Weatherproof: Except as noted, all UHF series are non-weatherproof
Material:
- Material: nickel-plated copper, gold-plated
- Conductor: Gold-plated copper
- Impedance: 50 ohms
