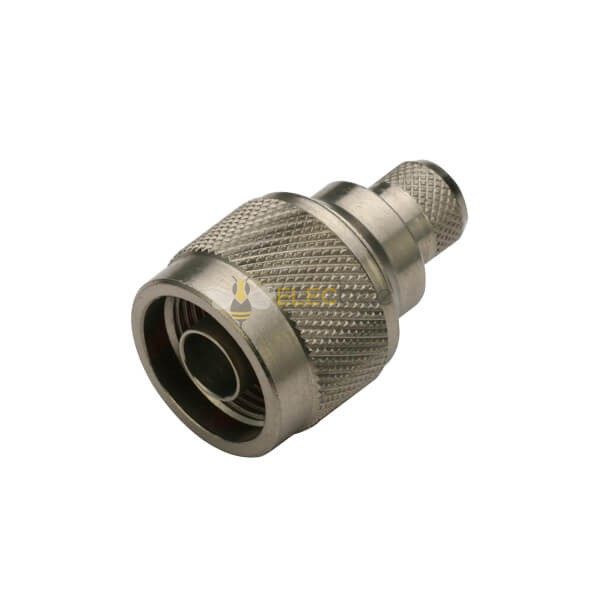

N Type Connector for RG214 Male Crimp Type for Cable
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
Cable
-
Terminal type
Solder Type
-
Gender
Male
-
direction
Straight
-
Polarity
Standard
-
Function
Other
-
Coating
Nickel Plating
-
Installation characteristics
None
-
Impedance
50 Ω
-
Outer conductor connection
Crimp
- Description
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~6 Ghz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 2500 V rms
- Working Voltage: 1000 V rms
- Center Contact Resistance ≦ 1.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 0.2 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
- Coupling: 5/8-24 thread
- Contact Retention: 6 lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range: -55°C ~ +165°C ( PE Cable-40°C ~ +85°C )
- Vibration: MIL-STD-202 Method204
- Corrosion resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Nickel Plated |
| Center Contact | Brass | Gold Plated |
| Insulator | Teflon | -- |
- Drawings
