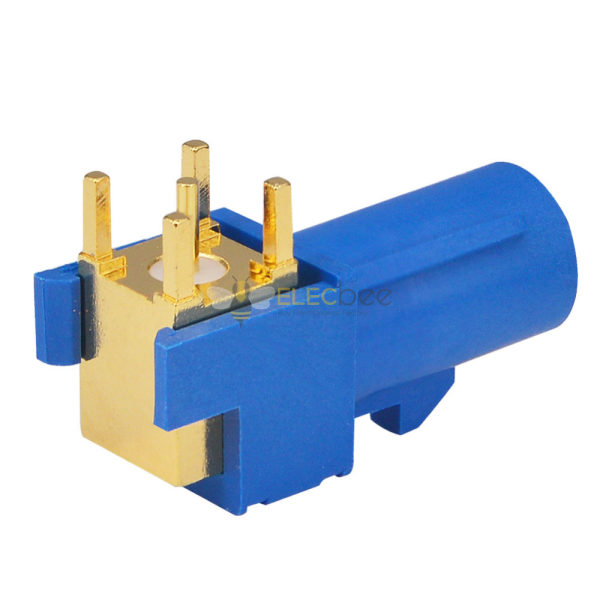

Blue Fakra C SMB Plug Male PCB Mount Right Angle Connector for GPS RF Communications Systems
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
PCB Mount / Panel Mount
-
Terminal type
PCB Soldering
-
Gender
Male
-
direction
Right Angle
-
Polarity
Standard
-
Coating
Nickel Plating
-
Impedance
50 Ω
-
Outer conductor connection
Without
- Description
Electrical Characteristics：
- Impedance：50 Ohm
- Frequency Range：0 to 4 GHz
- Voltage Rating：225 VRMS
- Dielectric Withstanding Voltage：800 Volts
- Insulation Resistance：1000 MΩ min
Mechanical Characteristics：
- Engagement Force：20 N max.
- Disengagement Force：10 N min.
- Connector Durability：500 mating and unmating cycles min
Environmental Characteristics：
- Temperature Range：-40⁰C to +100⁰C
Material:
| Part | Material | Finish |
| Body | Brass | Nickel |
| Center Contact Pin | Phosphor | Gold Plated |
| Insulator | TEFLON |
