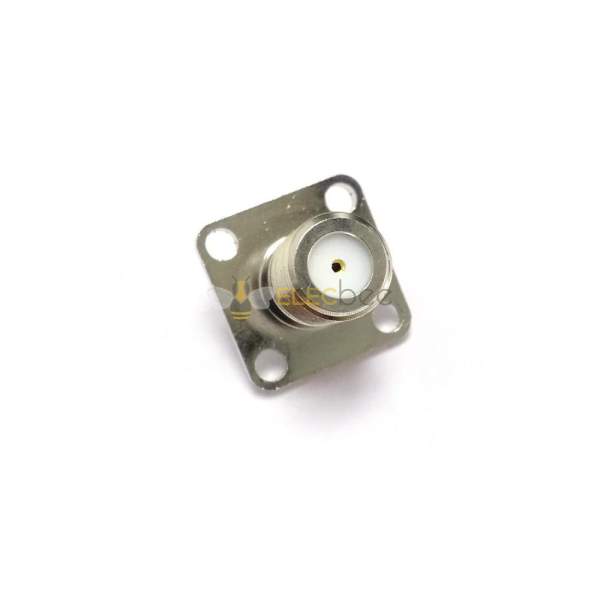

F Jack Female 4 Holes Flange Solder Panel Mount RF Connector 17.5*17.5
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
PCB Mount / Panel Mount
-
Installation characteristics
4 Hole Flange/Solder Type
-
Gender
Female
-
direction
Straight
- Description
Electrical Characteristics
- Impedance：75 ohm
- Frequency Range: 0~3Ghz
- VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
- Withstanding Voltage: 500 V rms
- Working Voltage: 170 V rms
- Center Contact Resistance ≦ 10 mΩ
- Outer Contact Resistance ≦ 5 mΩ
- Insultation Resistance ≧ 1000 mΩ
- RF Leakage -100dB min @1GHz
Mechanical Characteristics
- Coupling: 3/8-32 thread
- Cable Retention: 20 lbs min.
- Durability(mating) ≧ 500 cycles
Environmental Characteristics
- Temprature Range: -40°C ~ +60°C
