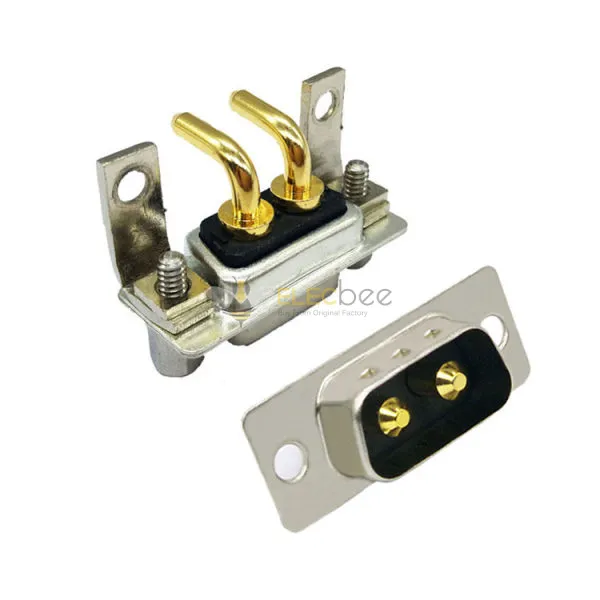

D SUB 2Pin Connector Right Angled Male Female Through Hole 2pin 1 Row High Current

D SUB 2Pin Connector Right Angled Male Female Through Hole 2pin 1 Row High Current

Name: D SUB 2Pin Connector Right Angled Male Female Through Hole 2pin 1 Row High Current
Brand: Elecbee
SKU: EB-607-0178-V
Price: 2.50 USD
Availability: InStock
Rating: 95 / 20 (20 reviews)

$2.50

SKU: EB-607-0178-V

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$2.38

10-19 PCS

$2.14

20-99 PCS

$1.71

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Current

- +

Contact Sales

D SUB 2Pin Connector Right Angled Male Female Through Hole 2pin 1 Row High Current

EB-607-0178-V

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable/PCB Mount/Panel Mount
Terminal type

Plug-in
Installation characteristics

Front Open Screwlock(4-40)
direction

Right Angle
Connector Type

one pair (Plug and Socket)
Number of Positions

2 Pin
filter

No
Number of Rows

1
waterproof level

Not Waterproof
Continuous plating

Gold

Description

Electrical Characteristics

Voltage Rating :300 V AC/rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance：5000MΩ
Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

DF: -67°F (-55°C) to + 257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
