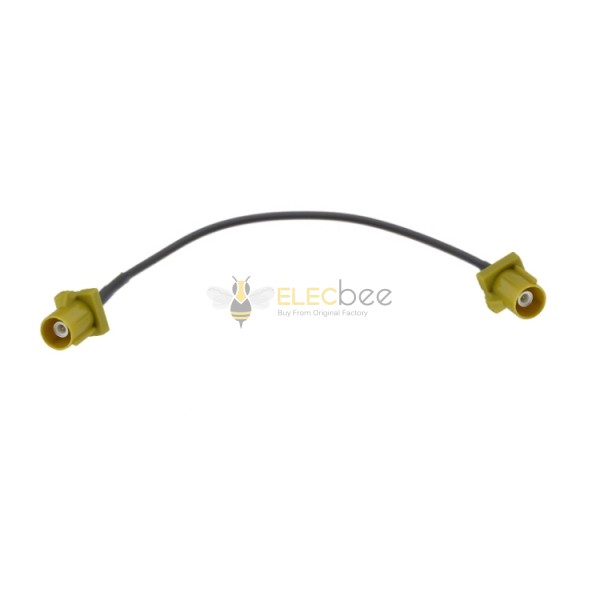

Fakra K Male to Fakra K Male Vehicle Car Extension Cable RG174 50CM
- Specification
-
Product Attribute
Attribute Value
Search
-
Connector A Type
Fakra
-
Connector A Gender
Male
-
Connector A Direction
Straight
-
Connector B Type
Fakra
-
Connector B Gender
Male
-
Connector B Direction
Straight
-
Cable Type
RG174
-
Wire length
0.5m
- Description
Electrical Specifications:
- Frequency Range:0-6 GHz
- Performance Spec:SAE-USCAR-17, 18
- Dielectric Withstanding Voltage (Sea Level):> 1000 VRMS
- VSWR DC- 200MHz:1.2 max
- 200-500MHz:1.35 max
- 500MHz-2GHz:1.4 max
- 2-3GHz:1.5 max
- 3-6GHz:1.6 max
- Insulation Resistance:1000 MΩ min
- Contact Resistance
- Center Contact:<20 mΩ
- Outer Contact:< 10 mΩ
- Insertion Loss
- Spec Requirement:< 0.3 dB max from DC-3 GHz
- DC-200MHz:< 0.15 dB
- 200-500MHz:< 0.25dB
- 500MHz-3GHz:< 0.3 dB
- 3-6GHz:< .45dB
Mechanical properties:
- Mating Durability:100 mating cycles min
- Plastic Housing Engagement Force
- Engagement :20 N
- Disengagement:25 N
- Cable Retention Force
- Cable Group 1:110 N
- Cable Group 4:180 N
- Coding;12 mechanical and color coding
