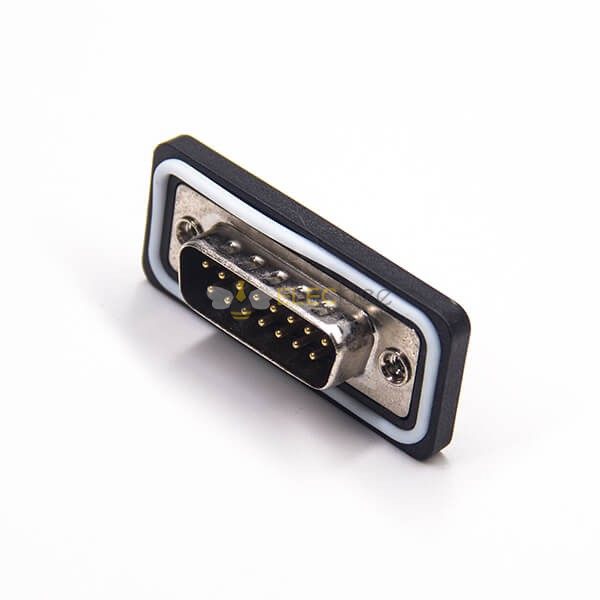

15 pin d sub solder connector Standard IP67 type 2 Rows Solder Type For Cable

15 pin d sub solder connector Standard IP67 type 2 Rows Solder Type For Cable

Name: 15 pin d sub solder connector Standard IP67 type 2 Rows Solder Type For Cable
Brand: Elecbee
SKU: EB-603-0078
Price: 7.39 USD
Availability: InStock
Rating: 102 / 21 (21 reviews)

$7.39

SKU: EB-603-0078

Copy to clipboard

80 Sales

21 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$7.02

10-19 PCS

$6.32

20-99 PCS

$5.06

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

15 pin d sub solder connector Standard IP67 type 2 Rows Solder Type For Cable

EB-603-0078

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
direction

Straight
Terminal type

Solder Cup
Connector Type

Plug
Continuous plating

machined pin
filter

No
Number of Positions

15 pin
Number of Rows

2
Port number

Single
Installation characteristics

Shell (M3.0)
waterproof level

IP67
Continuous plating

Gold

Description

Electrical Characteristics

Contact resistance:10 mOhm
Current rating signal:7,5 A
Dielectric with standing voltage signal:1000 V
Working voltage signal:125 V
Test voltage:1000V

Mechanical Characteristics

Extraction force:30N
Insertion force:30N

Environmental Characteristics

Operating Temperature：-25°C~ +125°C

Material:

Part	Material	Finish
Body	steel	Tin
Center Contact Pin	Copper alloy	hard acid gold over nickel
Insulator	Polyester GF, UL 94V-0	------
