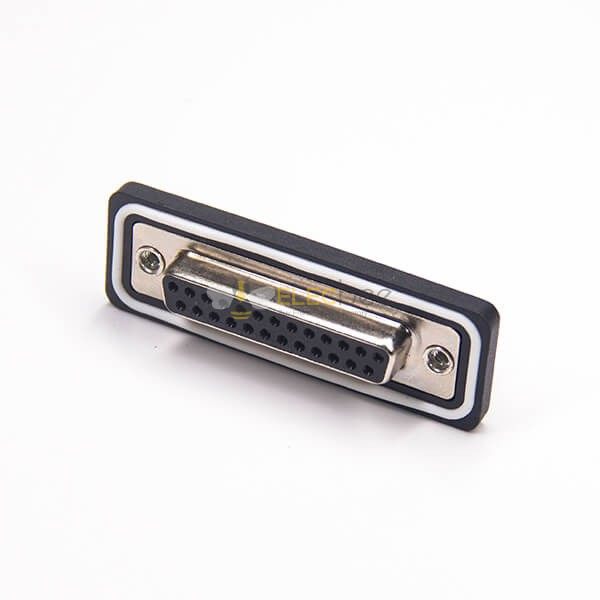

D sub 25 Pin Female Connector Standard IP67 type 2 Rows Through Hole Panel Mount With Harpoon
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
direction
Straight
-
Continuous plating
machined pin
-
filter
No
-
Number of Positions
25 pin
-
Connector Type
Socket
-
Number of Rows
2
-
Port number
Single
-
Installation characteristics
Rear Open Screwlock(4-40)
-
waterproof level
IP67
-
Continuous plating
Gold
-
Terminal type
Through Hole
- Description
Electrical Characteristics
- Contact resistance:10 mOhm
- Current rating signal:7,5 A
- Dielectric with standing voltage signal:1000 V
- Working voltage signal:125 V
- Test voltage:1000V
Mechanical Characteristics
- Extraction force:30N
- Insertion force:30N
Environmental Characteristics
- Operating Temperature：-25°C~ +125°C
Material:
| Part | Material | Finish |
| Body | steel | Tin |
| Center Contact Pin | Copper alloy | hard acid gold over nickel |
| Insulator | Polyester GF, UL 94V-0 | ------ |
