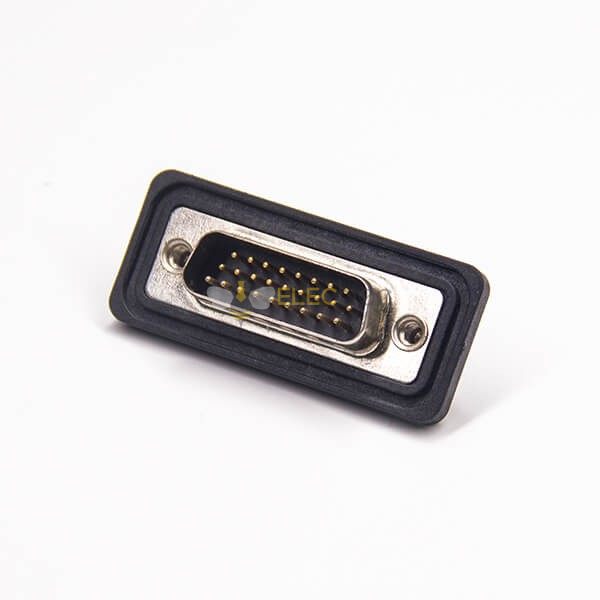

D sub 26 Pin Standard IP67 Type Through Hole Panel Mount

D sub 26 Pin Standard IP67 Type Through Hole Panel Mount

Name: D sub 26 Pin Standard IP67 Type Through Hole Panel Mount
Brand: Elecbee
SKU: EB-603-0091
Price: 19.29 USD
Availability: InStock

$19.29

SKU: EB-603-0091

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$18.33

10-19 PCS

$17.36

20-99 PCS

$15.43

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Waterproof D-sub,Plug,26 Pin,2 Rows,Single Port,Right Angle,Machined Pin,Gold plated, PCB Mount,IP67,Without Filtered.
Interfacial seal to ensure function even when immersed;
Better against mechanical impacts during installation;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Applications:

industrial machinery
medical equipment
test and measurement equipment

communications

Contact Sales

D sub 26 Pin Standard IP67 Type Through Hole Panel Mount

EB-603-0091

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Right Angle
Connector Type

Plug
Continuous plating

machined pin
filter

No
Number of Positions

26 pin
Number of Rows

2
Port number

Single
Installation characteristics

Shell (M3.0)
waterproof level

IP67
Continuous plating

Gold
Terminal type

Through Hole

Description

Electrical Characteristics

Contact resistance:10 mOhm
Current rating signal:7,5 A
Dielectric with standing voltage signal:1000 V
Working voltage signal:125 V
Test voltage:1000V

Mechanical Characteristics

Extraction force:30N
Insertion force:30N

Environmental Characteristics

Operating Temperature：-25°C~ +125°C

Material:

Part	Material	Finish
Body	steel	Tin
Center Contact Pin	Copper alloy	hard acid gold over nickel
Insulator	Polyester GF, UL 94V-0	------
