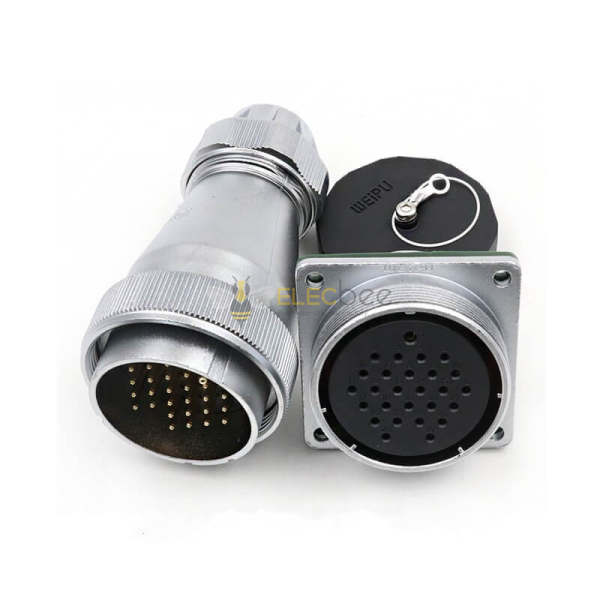

27pin TE+Z Straight Connector WF48 series Male Plug and Female Jack Connector Aviation plug Socket
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Panel Mount
-
Terminal type
Solder Type
-
Installation characteristics
4 Hole Flange
-
Gender
Male and Female (one Pair)
-
direction
Straight
-
Number of Positions
27 pin
-
waterproof level
IP65
- Description
WF48 TE+Z 27pin
 (1)-1-1_watermark.jpg)
 (2)-1_watermark.jpg)
 (4)-1_watermark.jpg)
 (3)-1_watermark.jpg)
 (5)-1_watermark.jpg)
 (6)-1_watermark.jpg)
Electrical Characteristics
- Working Voltage: 500 V rms
- insulator resistance:2000 ohm
- test Voltage:1500 V rms
Mechanical Characteristics
- Coupling: threaded
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Temperature Range: -40°C~85°C
- IP65
Material:
| Part | Material | Finished |
| Body | Zinc | silver |
| Center Contact Pin | gold-plated brass | gold |
| Insulator | PPS | black |
