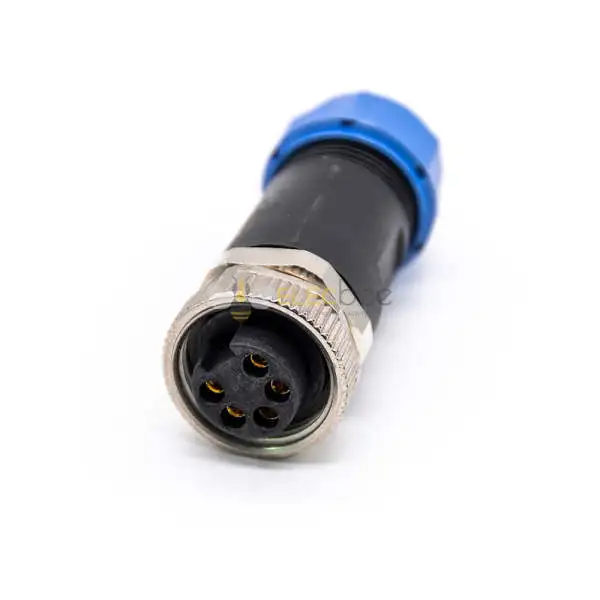

M7/8 Field Wireable Connector 5 pin Female Straight UnShielded Plastic PG13.5
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Cable
-
Terminal type
Screw-Joint
-
Gender
Female
-
direction
Straight
-
Number of Positions
5 pin
-
Shield
Unshielded
- Description
Electrical Characteristics
- Rated voltage: 300V for 3/4/5 pin
- Rated current: 12A for 3 pin, 9A for 4/5 pin
- Insulation resistance: ≥100 MΩ
- Contact resistance: ＜3 MΩ
Mechanical Characteristics
- Coupling method: threaded connection
- Direction: Straight/Angled
- Mechanical operation: ＞500 mating cycles
- Wire gauge: max.2.5mm²(max.16AWG) for 3/4 pin, max.1.5-2.5mm²(max.16-14AWG) for 5 pin
Mechanical Characteristics
- Temperature range： -25°C ~ + 85°C
- Protection degree： IP67/IP68
Material
- Pin contant: CuZn
- Socket contact: CuSn
