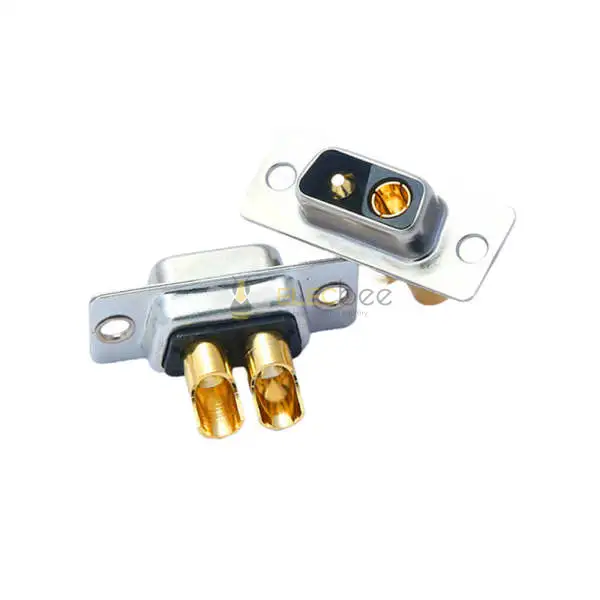

D-SUB 2V2 High Current Female Straight Solder Type 10A Gold Plated Solid Pin Single Hole
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Cable/PCB Mount/Panel Mount
-
Terminal type
Solder Cup
-
Installation characteristics
Screw Locks
-
Gender
Female
-
direction
Straight
-
Number of Positions
2V2
-
Number of Rows
1
-
waterproof level
Not Waterproof
-
Continuous plating
Gold
-
Current
10A
- Description
Electrical Characteristics
- Voltage Rating：300V AC/ rms 50Hz
- Withstanding Voltage：1000V AC/ rms 50Hz for one minute
- Insulation Resistance：1000MΩ at 500V DC
- Contact Resistance ：20 MΩ max.
Mechanical Characteristics
- Single Contact Insertion Force：1.19 lb. (0.54 kg.) max.
- Single Contact Withdrawal Force：0.13 lb. (0.06 kg.) min.
Material:
| Part | Material | Finish |
| Body | Steel | ------- |
| Center Contact Pin | Brass | Gold |
| Insulator | Glass-filled thermoplastic | ------ |
