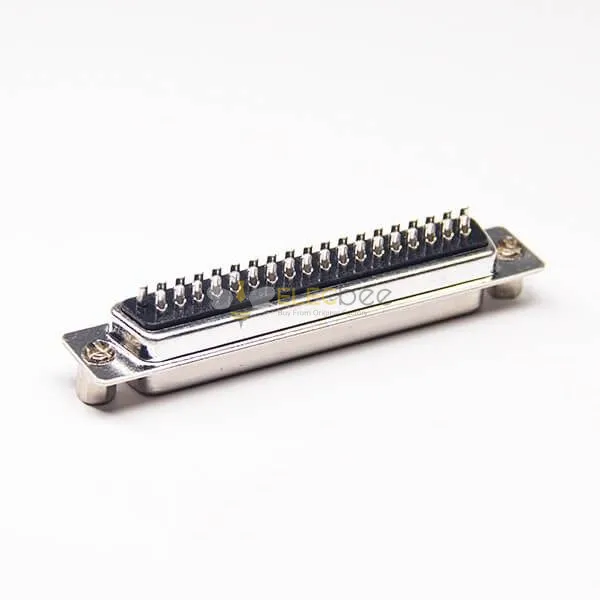

D sub 37 pin connector Standard Type Zinc Alloy D-sub 37 Pin Female Solder Type For Cable

D sub 37 pin connector Standard Type Zinc Alloy D-sub 37 Pin Female Solder Type For Cable

Name: D sub 37 pin connector Standard Type Zinc Alloy D-sub 37 Pin Female Solder Type For Cable
Brand: Elecbee
SKU: EB-601-0061
Price: 1.99 USD
Availability: InStock

$1.99

SKU: EB-601-0061

Copy to clipboard

85 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$1.89

10-19 PCS

$1.79

20-99 PCS

$1.59

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Standard D-sub,Receptacle,37Pin,2 Rows,Single Port,Straight Type,Stamped Pin,Tin plated,Solder Cup,Cable,Front Close Screwlock,IP20,Without Filtered
Industry standard interfacing RS232 and RS449 mating configurations per EIA standards;
Inserts are flame-retardant thermoplastic;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

D sub 37 pin connector Standard Type Zinc Alloy D-sub 37 Pin Female Solder Type For Cable

EB-601-0061

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
Terminal type

Solder Cup
Installation characteristics

Front Close Screwlock(4-40)
direction

Straight
Connector Type

Socket
Number of Positions

37 pin
Continuous plating

stamped pin
filter

No
Number of Rows

2
Port number

Single
waterproof level

Not Waterproof
Continuous plating

Tin

Description

Applications:

Business equipment
Electronic office systems
Data communications
Technology equipment
Mobile communications
Consumer electronics

Electrical Characteristics

Voltage Rating :250V AC/ rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.

Mechanical Characteristics

Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

Operating Temperature:-67°F (-55°C) to +257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
