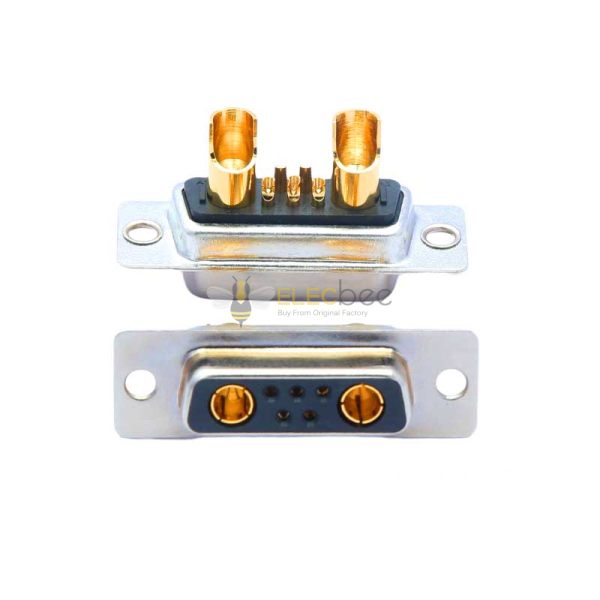

7W2 D-sub Female Straight Solder Type Gold Plated Machine pin Single Hole 10A 20A 30A 40A
Gender:
Features:
- Product Name：D-SUB ,7W2 High Current,Female,Straight,Solder Type,10A 20A 30A 40A,Gold Plated,Machine pin,Single Hole
- D-Sub connectors are worldwide known as standardized V/Cinterfaces for several applications
- lndirect mating system lnternational approvals UL & CSA
- 3 different connector types available: vertical,angled and cable connectors
- Number of Pins：A=15 Pin , B=25 Pin , C=37 Pin , D=50 Pin , E=9 Pin
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Cable/PCB Mount/Panel Mount
-
Terminal type
Solder Cup
-
Installation characteristics
Screw Locks
-
Gender
Female
-
direction
Straight
-
Number of Positions
7W2
-
Number of Rows
1
-
waterproof level
Not Waterproof
-
Continuous plating
Gold
- Description
Applications：
- Commercial equipment
- Electronic office system
- Data communication
- Medical equipment
- Mobile communication
- Consumer electronics
Electrical Characteristics
- Voltage Rating：300V AC/ rms 50Hz
- Withstanding Voltage：1000V AC/ rms 50Hz for one minute
- Insulation Resistance：1000MΩ at 500V DC
- Contact Resistance ：20 MΩ max.
Mechanical Characteristics
- Single Contact Insertion Force：1.19 lb. (0.54 kg.) max.
- Single Contact Withdrawal Force：0.13 lb. (0.06 kg.) min.
Material:
| Part | Material | Finish |
| Body | Steel | ------- |
| Center Contact Pin | Brass | Gold |
| Insulator | Glass-filled thermoplastic | ------ |
