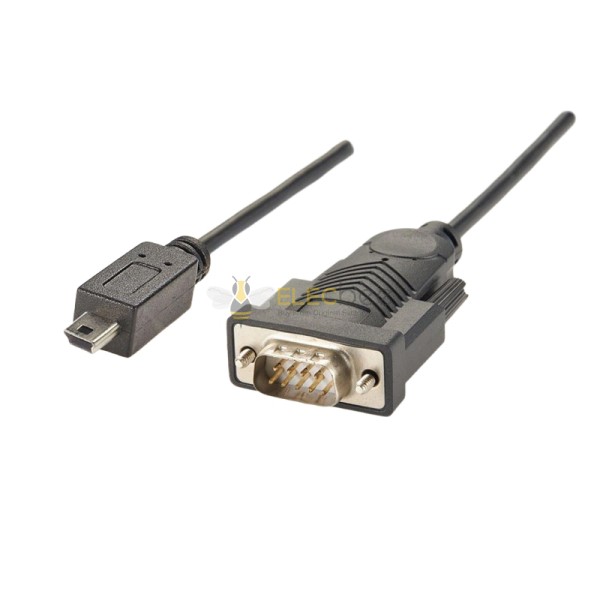

Mini USB To RS232 Serial Adapter RS232 DB9 Male Converter Cable 1M
Features:
- D-sub Cable, Mini 5-Pin USB to DB9 Serial Converter，Mini USB to Serial RS-232 DB9 FTDI Mini Adapter with Extension Cable
- Industry-standard interfacing RS232 and RS485 mating configurations per EIA standards;
- Inserts are flame-retardant thermoplastic;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, the same quality with a much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Connector A Type
D-sub
-
Connector A Gender
Male
-
Connector A Direction
Straight
-
Connector B Type
Mini USB
-
Connector B Gender
Male
-
Connector B Direction
Straight
- Description
Applications:
- USB to serial female adapter cable allows any PC to connect serial devices and programs that communicate through COM ports
- Designed for connecting Serial devices such as DB9-equipped PCs, routers, GPS, Programming machines, barcode scanners, label writers, serial modems, digital cameras, card readers, palm PCs, digital organizers, etc
- Controlling keypads, cameras, touch screens, and printers in ATMs
- Directing security cameras in an office or warehouse
- Running cash registers, receipt printers, and credit card machines in a store or restaurant
Electrical Characteristics
- Rated Current:1Amp
- Contact resisting:15mΩ Max
- Insulator resisting:1000mΩ Min @DC 500V
- Operating Temperature:-40°C to +105°C
Mechanical Characteristics
- Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
- Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.
Environmental Characteristics
- Operating Temperature:-40°C to +105°C
