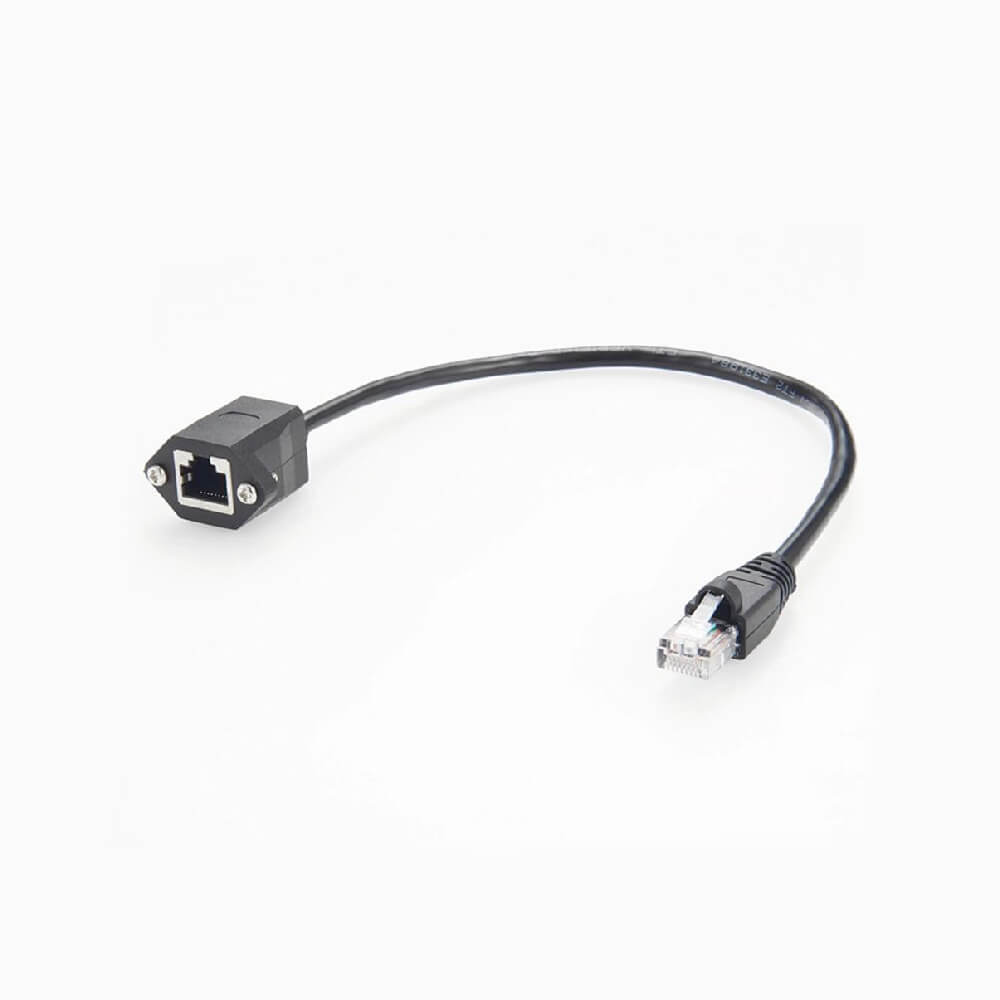

RJ45 Male to RJ45 Female Panel Mount Ethernet LAN Network High Speed Extension Cable M3 Mounting Screws 30CM
Features:
- Panel Mount Ethernet Extension Cable
- Used to achieve high-speed data transfer connections
- The theoretical transmission rate is up to 1000Mbps, supporting 250MHz bandwidth, theoretical download speed up to 125MB/s.
- 50 Ohm nominal impedance
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, the same quality with a much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Panel Mount
-
Connector A Type
RJ45
-
Connector A Gender
Male
-
Connector A Direction
Straight
-
Connector B Type
RJ45
-
Connector B Gender
Female
-
Connector B Direction
Straight
-
Number of contacts
8p8c
- Description
Applications:
- Mil-Aero
- Telecommunication
- RFID
- Antennas
- Test and measurement
- Radar systems
Electrical Characteristics
- Impedance:50 Ohm
- Frequency Range: DC- 14 GHz
- Straight DC- 6 GHz:1.3
- Straight 6-14 GHz:1.25
- RF Leakage: - 128 dB DC - 1 GHz
- Power Handling: .60kW - 10kW max
- PIM: -160 dBc
Mechanical Characteristics
- Engagement Force：15 N (3.37 lb) typical
- Disengagement Force：10 N (2.25 lb) typical
- Retention Force of Interface：550 N (123.65 lb) min
- Connector Durability：500 mating cycles min
- These characteristics are typical and may not apply to all connectors.
Environmental Characteristics
- Temperature Range：-65°C to +165°C
