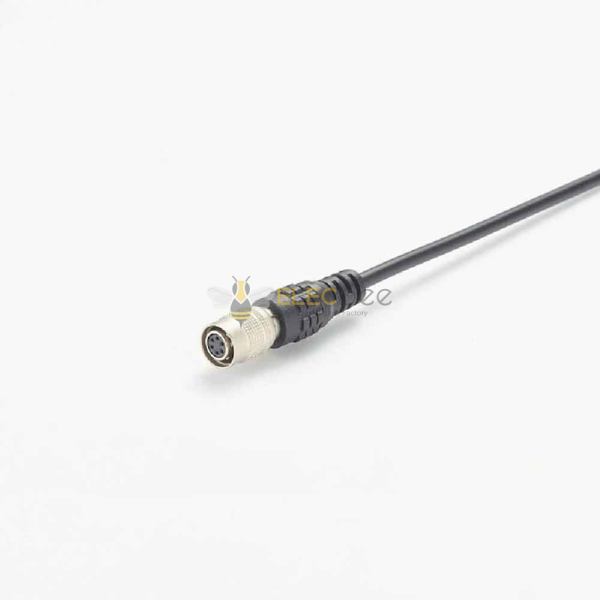

Industrial Camera 6 Pin Jack Female Power Cable Single End HR10A-7P-6S 0.5Meter
Features:
- HRS Camera link cable, 6 Pin Jack Industrial camera harnesses, HR10A-7P-6S Industrial Ethernet cable, 0.5Meter
- HR IO cable is a cable that connects an electronic device to a trigger, usually used to connect a camera to a flash or other external device. The cable can send the camera’s shutter signal to an external device through the trigger, thus enabling remote control of camera shots or flash triggering.
- Exquisite self-locking device, protect the connection is firm and reliable;
- Reasonable key position design with anti-blind insertion function and multiple key position changes;
- Miniaturized compact structure design can effectively save equipment space;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Specification
-
Product Attribute
Attribute Value
Search
-
Connector A Type
HRS Connector
-
Connector A Gender
Female
-
Connector A Direction
Straight
-
Connector A Pin Count
6pin
-
Cable Length
50CM
- Description
MATERIAL:
- Shell: Zinc alloy and brass
- Insulator: Polyamide resin, PBT resin
- Contact: Copper alloy
Main Application:
- 1. Industrial imaging technology
- 2. Machine Vision System
- 3. Industrial cameras
- 4. Scan on pipeline processing
- 5. Product testing
- 6. Image recognition
- 7. Factory Automation System
Electrical Characteristics:
- Contact resistance:10mø min. Measured at DC 1A
- Insulation resistance:1,000Mø min. Measured at DC 100V
- Withstanding voltage:No flashover or dielectric breakdown. AC 300V for one minute, 4 contacts : AC 500V for 1 minute
- Vibration resistance:No electrical discontinuity of 10µs or greater 10 to 55Hz/cycle, amplitude : 0.75mm, 3 axis directions,for 2 hours each
- Shock resistance: No electrical discontinuity of 10µs or greater Acceleration : 490m/s2 , duration : 11ms 3 directions,3 times each
- Mating Cycles Contact resistance : 15mø min. 1,000 times
Environmental Characteristics:
- Humidity resistance:5Mø min. (at high humidity)50Mø min. (at dry)
- Temperature : 40℃, relative humidity : 90 to 95%,left for 96 hours
