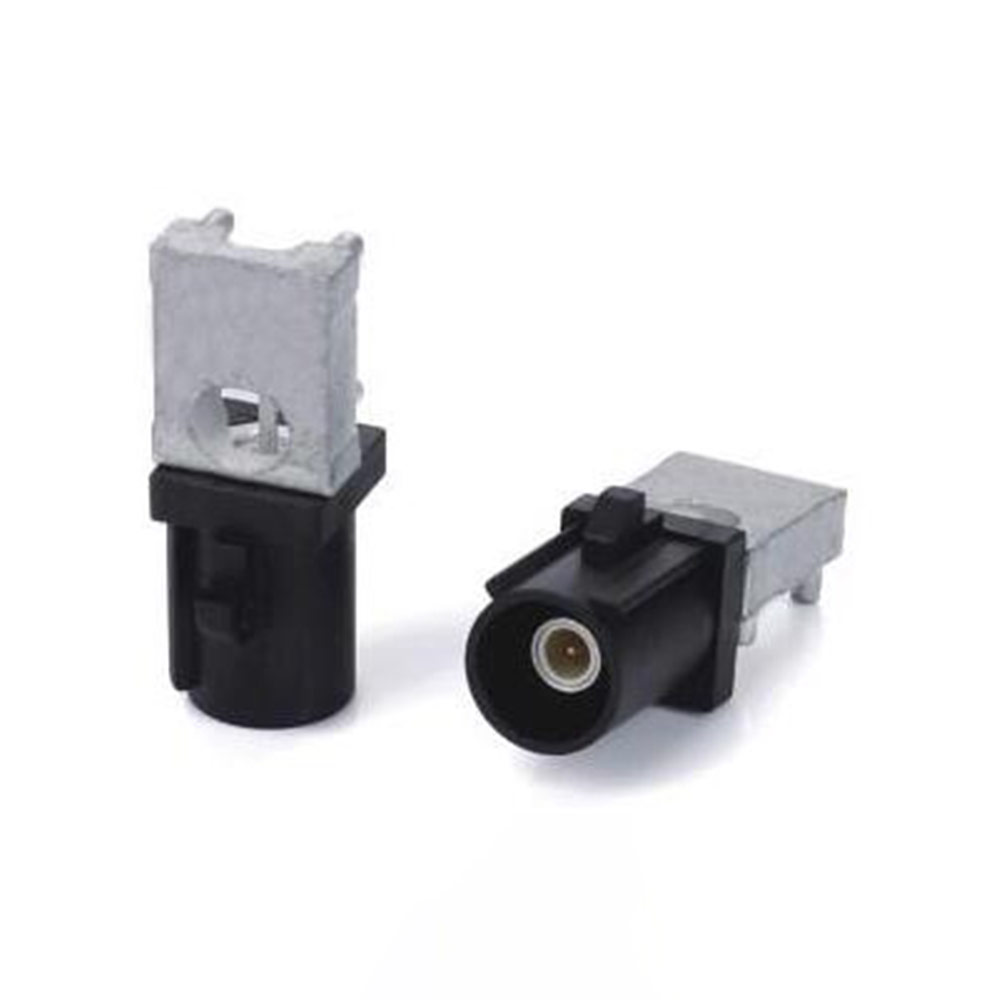

90 Degree Fakra Offset Type SMT Male Connector Vehicle A-Coding Black Panel Mount
Features and Benefits
- Fakra Connector, Male Connector, Offset Type/SMT, Right Angled, A-Coding
- 14 different mechanical and color key codes
- Robust plastic housing with locking feature and audible clicking noise
- Tape and reel packaging for automatic component placement
- Sealed units available
- Applications include Automotive, Global Positioning Satellite, Satellite Radio, Bluetooth, Remote Vehicle Diagnostic, Infotainment Systems, etc;
- Pre-assembled with different RF connectors for choice. Size and cable length can be customized;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, the same quality with a much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Plastic
-
Installation method
PCB Mount / Panel Mount
-
Installation characteristics
OffsetType/Through Hole
-
Gender
Male
-
direction
Right Angle
-
Impedance
50 Ω
-
Coding
A
-
Docking method
Bayonet
- Description
FAKRA Connectors
- FAKRA connectors(Fachkreis Automobil, a German standard) are SMB-based automotive-grade connectors that can operate up to 6 GHz. These connectors are embedded within a plastic housing with a locking feature with an audible clicking noise that lets you know a connection has been made. They are available in 14 different mechanical layouts which are color coded for easy identification and mismatching prevention.
- FAKRA connectors meet the mechanical and environmental requirements of the automotive industry. The worldwide automotive industry has standardized connectors based on the FAKRA and USCAR standards.
- They can apply to a variety of connections in automotive vehicles, with applications including SDARS, cellular telephony, GPS navigation, keyless entry, and satellite radio.
Applications
- Cameras
- Sensors for detection, evaluation, and reaction
- High-Performance Computing
- Radio antenna
- GPS telematics or navigation
- Infotainment & television
- Mobile communication
- RF Bluetooth / WLAN applications
- Radio frequency remote control for keyless entry
- Vehicle auxiliary heating
Fakra Close-up View
- 1. Mounting groove for cable connectors for chassis mounting
- 2. Secure the primary locking system between the plug and coupler with tactile and audible locking
- 3. Protection bars and protective strips prevent unintentional opening of the primary latching arm
- 4. Protection of the coaxial insert by shock and vibration-resistant coded housing
- 5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
- 6. Sophisticated mechanical and color-coding system with 14 different codes
Fakra Code
Interface Dimensions
| Electrical properties | |
| Characteristic impedance | 50Ω |
| Frequency Range | DC-6 GHz |
| Withstand voltage | 800 Vrms |
| Working current | 1A DC Max(based on the wire guage and length) |
| Inner conductor contact resistance | 10 mΩ Max(Original) |
| Outer conductor contact resistance | 5 mΩ Max(Original) |
| Return loss | 18 dB Min |
| Insertion loss | ≤0.1x√fGHz dB |
| Insulation resistance | 1000 MΩ Min |
| Radio frequency leakage | -45 dB @up to 3 GHz; -40 dB@ up to 6 GHz |
| Mechanical behavior | |
| Durable plug | 25 cycles Min |
| Snap retention | 110 N Min |
| Withdrawal force (four ports) | 2N Min |
| Insertion Force (Four Ports) | 45 N Max(Unwaterproof Single Side) |
| Environmental characteristics | |
| Application temperature | -40℃ to +105℃ |
| Damp heat cycle | USCAR-2, Paragraph 5.6.2 /ISO 20860-2 Clause 9.3 |
| Vibration & Mechanical Shock | USCAR-2, Paragraph 5.4.6 /ISO 20860-2 Clause 9.1 |
| Thermal shock | USCAR-2,Paragraph 5.6.1/ISO 20860-2 Clause 9.2 |
| RoHS | √ |
| Material | |
| Shell | PA, PBT, PPE |
| Outer conductor | Zn, CuZn, CuSn, Stainless Steel |
| Insulator | LCP, PA, PTFE |
| Inner conductor | CuBe, Cuzn, CuSn |
| cover | PA, PBT, PPE |
| Collar | Cu |
| Buckle | PA,PBT, PPE |
| Surface treatment | |
| Outer conductor | Au, Sn, Ni |
| Inner conductor | Au |
