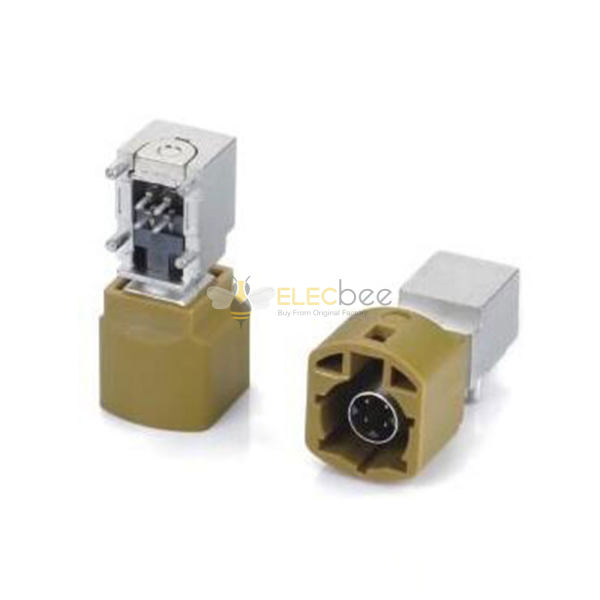

HSD 4 Pin K Coding Right Angle Vehicle Connector Male Curry SDARS Satellite Panel Mount
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Plastic
-
Installation method
PCB Mount / Panel Mount
-
Installation characteristics
OffsetType/Through Hole
-
Gender
Male
-
direction
Right Angle
-
Impedance
100 Ω
-
Number of Positions
4 pin
-
Coding
K
-
Docking method
Bayonet
- Description
HSD Connectors
- High-Speed Data (HSD) FAKRA Connectors
- The FAKRA (Fachkreis Automobil) series with its High-Speed Data FAKRA connectors. One-pin FAKRA connectors are no longer adequate for applications that require higher data transmission rates. HSD FAKRA four-pin connectors meet those demands with their 100-ohm impedance-controlled system, offering high speeds and top-quality signal transmission. These high-speed connectors are designed to satisfy RF requirements in various telematic and multimedia applications. They provide high-performance, cost-effective RF interfaces to FAKRA and USCAR standards. Their SMB-based design includes multiple color-coded plastic housings to ensure accurate connections, as well as to meet automotive specifications.
- Elecbee's HSD FAKRA connectors are ideal for automotive applications and are designed to meet the operational and environmental requirements of Satellite Digital Audio Radio Service (SDARS), Global System for Mobile Communications (GSM), and Global Positioning System (GPS).
Applications
- Cameras
- Sensors for detection, evaluation, and reaction
- High-Performance Computing
- Radio antenna
- GPS telematics or navigation
- Infotainment & television
- Mobile communication
- RF Bluetooth / WLAN applications
- Radio frequency remote control for keyless entry
- Vehicle auxiliary heating
HSD Coding
Interface Dimensions
HSD Wiring
| Electrical properties | |
| Characteristic impedance | 100Ω |
| Frequency Range | DC-6 GHz |
| Withstand voltage | 250 Vrms |
| Working current | ≤3A DC @85℃ ambient temperature |
| Inner conductor contact resistance | 10 mΩ Max(初始) |
| Outer conductor contact resistance | 7.5 mΩ Max(初始) |
| Return loss | ≥20dB 1GHz |
| Insertion loss | ≤0.1dB, DC-2GHz |
| Insulation resistance | 1000 MΩ Min |
| Inner/inter-pair offset | ≤5ps/≤25ps |
| near-end/far-end crosstalk | ≤5ps/≤25ps |
| Mechanical behavior | |
| Durable plug | 25 cycles Min |
| Snap retention | 110 N Min |
| Withdrawal force | 5 N Min |
| Insertion Force | 30 N Max |
| Waterproof Insertion force (single head) | 45 N Max |
| Environmental characteristics | |
| Application temperature | -40℃ to +105℃ |
| Damp heat cycle | USCAR-2, Paragraph 5.6.2 |
| Vibration & Mechanical Shock | USCAR-2, Paragraph 5.4.6 |
| Thermal shock | USCAR-2,Paragraph 5.6.1 |
| RoHS | √ |
| Material | |
| Shell | PA, PBT, PPE |
| Outer conductor | Zn, CuZn, CuSn, Stainless Steel |
| Insulator | LCP, PA, PTFE |
| Inner conductor | CuBe, Cuzn, CuSn |
| cover | PA, PBT, PPE |
| Collar | Cu |
| Buckle | PA,PBT, PPE |
| Surface treatment | |
| Outer conductor | Au, Sn, Ni |
| Inner conductor | Au |
