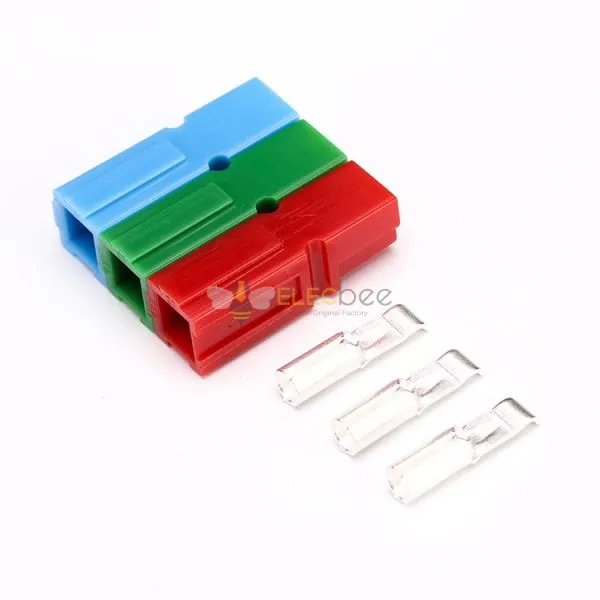

45A Quick Connect Disconnect Plug 1 Way Forklift Battery Cable Connector Plastic
- Specification
-
Product Attribute
Attribute Value
Search
-
Number of Positions
1 pin
-
Current
45A
- Description
| Type: | Forklift Connector |
| Number of Poles: | 1Pin /2 Pin /3 Pin /4 Pin |
| Rated Voltage (Volts): | 600V AC / DC |
| Rated Current (Amperes): | 40A / 45A / 50A / 55A / 75A / 120A / 175A / 180A / 350A |
| Colors: | Black /Brown /Red /Orange /Yellow /Green /Blue /Purple /Gray |
| Material of Terminal: | Copper Silver Plated |
| Material of Shell: | Plastic / PC UL94V-0 |
| Certificate: | CUL / CE / ROHS / REACH |
| Application Range: | Power Supply, Outdoor, Electric Vehicle, Energy, Medical, Industrial, Military, Etc |
[UNIVERSAL] High current & multipurpose universal battery quick connector set from RENHOTEC. Provides simple and convenient method for connect/disconnect power to a winch or other electrical device such as remote battery chargers, power inverters, solar setups,trailers, or for any purpose requiring a high-current, quick-disconnect connector.[DURABLE] Combined shell made from sturdy PC fire-retardant materials, allowing for over 10,000 connect/disconnect actions. With fitted rubber boot covers, protect against dust, moisture and corrosi.[SAFE] Both ends are suitable for connection to the power or load side because of its identical connectors.The ends are made to connect only one way, making it impossible to connect the wrong polarities to one another,preventing accidental reverse polarity when hooking up a charger.[EFFICIENT] The heavy duty components are suitable for low or medium current use. With 4 terminal pins made of red copper coated with silver have strong electrical conductivity and reduce the resistance to guarantee stable voltage and current.Operating Temperature: -20 to 125 degree Celsius.Suitable for Cable Size: 12AWG-1/0AWGHousing Gender: Genderless (housing can all connect to each other as long as they are same size and color)
| RH | Series | Current | Colors |
| SD | 45A | BL-(Black)BR-(Brown)RE-(Red)OR-(Orange)YE-(Yellow)GE-(Green)BU-(Blue)PU-(Purple)GY-(Gray)WH-(White) | |
| 50A | |||
| 75A | |||
| 120A | |||
| 180A | |||
| SG | 50A | ||
| 120A | |||
| 175A | |||
| 350A | |||
| SGD | 50A | ||
| 175A |
