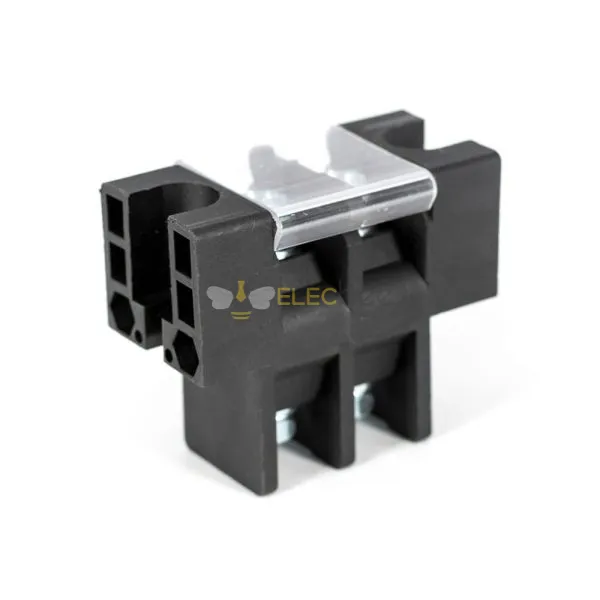

Panel Feed Through Terminal Block 2 Pin 50A 600V 8mm2 Straight
- Pure Copper Thickened Conductor
- Flame Retardant V0 Shell
- Load Stability
- Thickening Electroplating
- Specification
-
Product Attribute
Attribute Value
Search
-
Terminal type
Bulkhead Terminal Block
-
Docking method
Thread
-
Current
50A
-
Voltage
600V
-
Shell color
Black
-
Wire Gauge
8mmu00b2
-
Orientation
Straight
-
Number of Input Positions
2
-
Number of Output Positions
2
-
Mounting Type
Panel Mount
-
Top Termination
Screw with Fastening Plate
-
Bottom Termination
Screw
-
Terminal Material
Cooper
-
Insulator Material
PBT
-
Withstand Voltage Value
AC 3000V
-
Insulation Resistance
DC 500V 1000Mu03a9 or more
-
Pitch
13mm
-
Working Temperature
-40u2103uff5e105u2103
-
Relative Humidity
5% to 95%
-
Flammability Rating
V0
- Description
The Feed Through Terminal Block is handy for connecting wires. It is actually a piece of metal enclosed in insulating plastic. There are holes at both ends to insert wires, and there are screws for fastening or loosening.
The purpose is to realize electrical connections and make wire connections easier. It can realize a safe, reliable, and effective connection, especially in high current and high voltage environments.
Panel Feed Through Terminal Drawing
Product Type
| Orientation |
Straight |
Number Of Input Positions |
2 |
|---|---|---|---|
| Number Of Output Positions |
2 |
Color |
Black |
| Mounting Type |
Panel Mount |
Docking Method |
Thread |
| Terminal Block Type |
Bulkhead Terminal Block |
Top Termination |
Screw with Fastening Plate |
| Bottom Termination |
Screw |
Terminal Material |
Cooper |
| Insulation Material |
PBT |
Pitch |
13mm |
| Wire Gauge |
8mm² |
Electrical
| Rated Current |
50A |
Rated Voltage |
600V |
|---|---|---|---|
| Withstand Voltage Value |
AC 3000V |
Insulation Resistance |
DC 500V 1000MΩ or more |
| Operating Temperature |
-40℃～105℃ |
Standards and Specifications
| Relative Humidity |
5% to 95% |
Flammability |
V0 |
|---|
