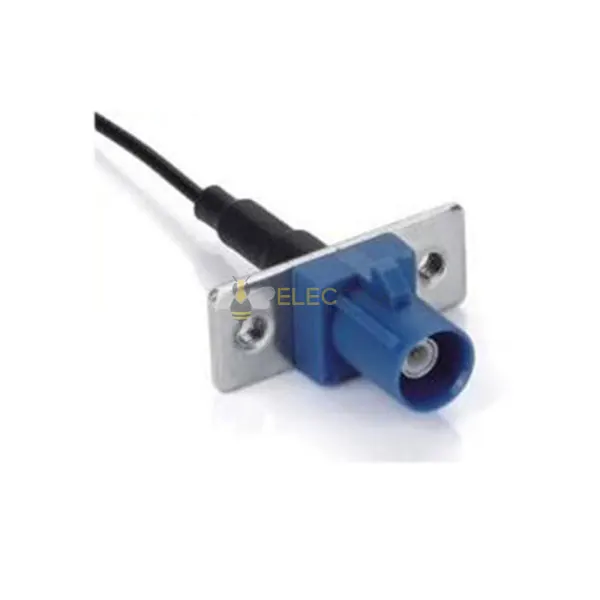

Fakra C Code Blue 2 Hole Flange Male Vehicle Connector GPS Signal Single End Cable 0.5m
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper Alloy
-
Installation method
cables
-
Installation characteristics
2 Hole Flange
-
Gender
Male
-
Function
Other
-
direction
Straight
-
Impedance
50 Ω
-
Coding
C
-
Docking method
Bayonet
-
Port number
Single
-
Wire length
0.5m
- Description
FAKRA Cable Assemblies
- Fakra cable assemblies are designed for easy termination by the user and are ideal for automotive, test and measurement, and drone applications.
- Industry-standard FAKRA connectors are mechanically keyed and color-coded to avoid mismatching during installation. Manufactured using state-of-the-art termination equipment to cut and strip cables and terminate connectors securely. These cables are individually tested to the highest quality standards
- They can apply to various connections in automotive vehicles, with applications including SDARS, cellular telephony, GPS navigation, keyless entry, and satellite radio.
Applications
- 360° Cameras
- Precision GPS
- Advanced driver assistance systems (ADAS)
- RFID
- Drones
- Wireless infrastructure
- Antennas
- Handheld devices
- Test and measurement
Fakra Close-up View
- 1. Mounting groove for cable connectors for chassis mounting
- 2. Secure the primary locking system between the plug and coupler with tactile and audible locking
- 3. Protection bars and protective strips prevent unintentional opening of the primary latching arm
- 4. Protection of the coaxial insert by shock and vibration-resistant coded housing
- 5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
- 6. Sophisticated mechanical and color-coding system with 14 different codes
Fakra Code
Interface Dimensions
Technical Specifications (Connectors)
|
Electrical properties |
|
| Characteristic impedance | 50Ω |
| Frequency Range | DC-6 GHz |
| Withstand voltage | 800 Vrms |
| Working current | 1A DC Max(based on the wire guage and length) |
| Inner conductor contact resistance | 10 mΩ Max(Original) |
| Outer conductor contact resistance | 5 mΩ Max(Original) |
| Return loss | 18 dB Min |
| Insertion loss | ≤0.1x√fGHz dB |
| Insulation resistance | 1000 MΩ Min |
| Radio frequency leakage | -45 dB @up to 3 GHz; -40 dB@ up to 6 GHz |
| Mechanical behavior | |
| Durable plug | 25 cycles Min |
| Snap retention | 110 N Min |
| Withdrawal force (four ports) | 2N Min |
| Insertion Force (Four Ports) | 45 N Max(Unwaterproof Single Side) |
| Environmental characteristics | |
| Application temperature | -40℃ to +105℃ |
| Damp heat cycle | USCAR-2, Paragraph 5.6.2 /ISO 20860-2 Clause 9.3 |
| Vibration & Mechanical Shock | USCAR-2, Paragraph 5.4.6 /ISO 20860-2 Clause 9.1 |
| Thermal shock | USCAR-2,Paragraph 5.6.1/ISO 20860-2 Clause 9.2 |
| RoHS | √ |
| Material | |
| Shell | PA, PBT, PPE |
| Outer conductor | Zn, CuZn, CuSn, Stainless Steel |
| Insulator | LCP, PA, PTFE |
| Inner conductor | CuBe, Cuzn, CuSn |
| cover | PA, PBT, PPE |
| Collar | Cu |
| Buckle | PA,PBT, PPE |
| Surface treatment | |
| Outer conductor | Au, Sn, Ni |
| Inner conductor | Au |
