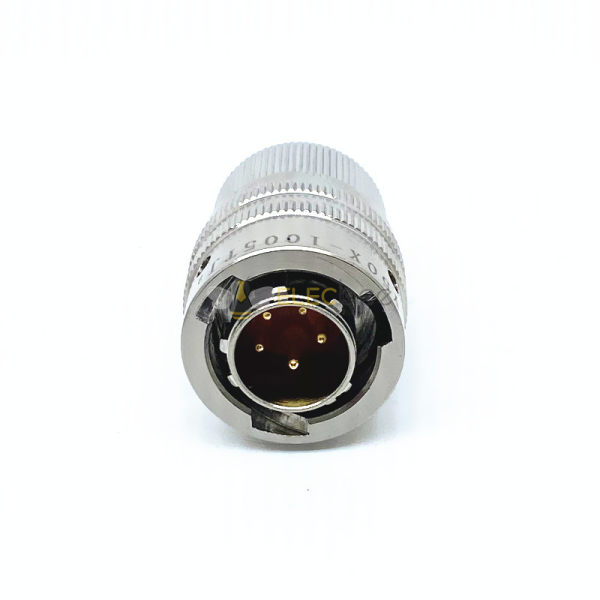

Y50X-1005TJ2 5 Pin Male Plug Aluminum alloy 10 Shell Size solder Bayonet Coupling Cable Connector
Y50X series circular connectors conform to the standard GJB101A, in the same way as the U.S.MIL-C-26482. The same type of response plugs and receptacles can be interchanged. The series connectors with bayonet coupling mechanism and solder contacts have the features of small volume, lightweight, highly widely used for electrical circuit connection in such fields as aeronautics, navigation, telecommunications, density, convenience, application, high durability of plugging and unplugging, etc.
Features:
- Y50X,10,5 Pin, Plug, Male, Straight, Bayonet Coupling, panel mount/PCB, Before the lock plate, waterproof, Aluminum alloy
- Adopts bayonet connection system, featuring fast connection and fast separation, small size, and lightweight
- Contact parts are welded, the shell is shielded and unshielded, and multiple coatings are available
- The socket has general sealing and glass-sintered sealing types to suit different working environments
- High Quality with 30 days 100% Money back
- From the OEM Original Factory, the same quality with a much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Aluminum Alloy
-
Installation method
Cable
-
Terminal type
Solder Cup
-
Gender
Male
-
direction
Straight
-
Connector Type
Plug
-
Number of Positions
5pin
-
Docking method
Bayonet
- Description
Applications:
- The strategic and tactical system
- Electronic countermeasure system
- Field electrical energy
- Communication signals connect the system
- Aerospace navigation communication and test tracking system
- Computer system
- Post and telecommunication railway command system
- Import medical equipment
- Connection of electrical and telecommunication signals
Electrical Characteristics
- Relative humidity: 92-98% at 40±2°C
- Insulation resistance: ≥3000MΩ
- Contact resistance: 1.5MΩ/3MΩ/5MΩ/7M
- Rated voltage: 600V
- Rated current: 3A / 5A / 10A / 25A
Mechanical Characteristics
- Vibration: vibration frequency is 10Hz-2000Hz, acceleration 196 m/s2
- Impact: acceleration 980.7 m/s2
- Collision: 392 m/s2
- Mechanical life: 500 times
Environmental Characteristics
- Working temperature: -55 ° C ~ +125 ° C
- Working pressure: 101.33kPa-1.33Pa
- Air tightness: ordinary socket: no more than 6 × 10-2 PaL / s
- Glass sintered socket: no more than 1×10-5 PaL/s
Material:
- Shell: aluminum alloy
- Insulator: thermoplastic material
- Contact: copper alloy gold plating/nickel plating
