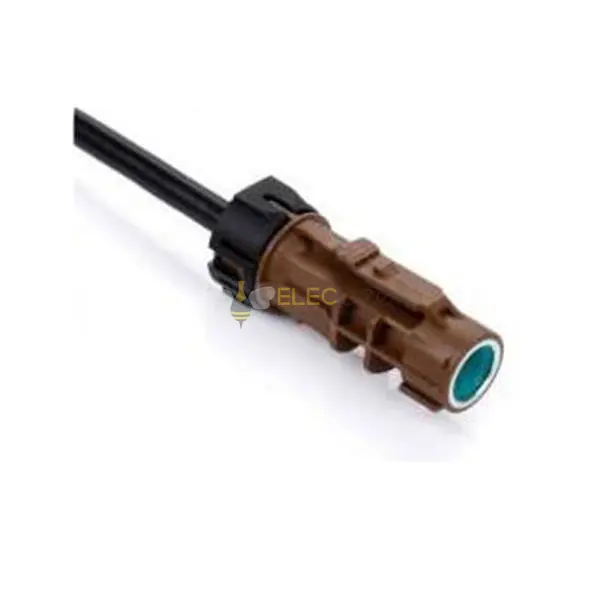

HSD Cable 4Pin F Code Waterproof Straight Female TV SDARS Satellite Single End Extension 0.5m
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
PA66
-
Installation method
Cable
-
Installation characteristics
None
-
Gender
Female
-
Function
Waterproof
-
direction
Straight
-
Impedance
100 Ω
-
Number of Positions
4 pin
-
Coding
F
-
Docking method
Bayonet
-
Port number
Single
-
Wire length
0.5m
- Description
HSD Cable Assemblies
- High Speed Data (HSD) Cable assemblies provide connectivity solutions for vehicle infotainment modules, cameras, consumer ports and display units. The product portfolio can be used in combination with a variety of protocols such as LVDS (Low Voltage Differential Signalling), GVIF (Gigabit Video interface), USB, IEEE 1394 as well as Ethernet protocols.
Applications
- Cameras
- Sensors for detection, evaluation, and reaction
- High-Performance Computing
- Radio antenna
- GPS telematics or navigation
- Infotainment & television
- Mobile communication
- RF Bluetooth / WLAN applications
- Radio frequency remote control for keyless entry
- Vehicle auxiliary heating
HSD Coding
Interface Dimensions
HSD Wiring
| Electrical properties（connector） | |
| Characteristic impedance | 100Ω |
| Frequency Range | DC-6 GHz |
| Withstand voltage | 250 Vrms |
| Working current | ≤3A DC @85℃ ambient temperature |
| Inner conductor contact resistance | 10 mΩ Max(初始) |
| Outer conductor contact resistance | 7.5 mΩ Max(初始) |
| Return loss | ≥20dB 1GHz |
| Insertion loss | ≤0.1dB, DC-2GHz |
| Insulation resistance | 1000 MΩ Min |
| Inner/inter-pair offset | ≤5ps/≤25ps |
| near-end/far-end crosstalk | ≤5ps/≤25ps |
| Mechanical behavior | |
| Durable plug | 25 cycles Min |
| Snap retention | 110 N Min |
| Withdrawal force | 5 N Min |
| Insertion Force | 30 N Max |
| Waterproof Insertion force (single head) | 45 N Max |
| Environmental characteristics | |
| Application temperature | -40℃ to +105℃ |
| Damp heat cycle | USCAR-2, Paragraph 5.6.2 |
| Vibration & Mechanical Shock | USCAR-2, Paragraph 5.4.6 |
| Thermal shock | USCAR-2,Paragraph 5.6.1 |
| RoHS | √ |
| Material | |
| Shell | PA, PBT, PPE |
| Outer conductor | Zn, CuZn, CuSn, Stainless Steel |
| Insulator | LCP, PA, PTFE |
| Inner conductor | CuBe, Cuzn, CuSn |
| cover | PA, PBT, PPE |
| Collar | Cu |
| Buckle | PA,PBT, PPE |
| Surface treatment | |
| Outer conductor | Au, Sn, Ni |
| Inner conductor | Au |
