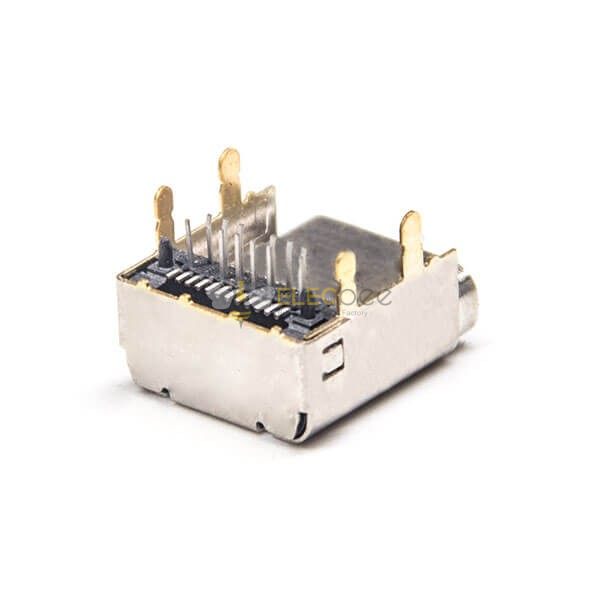

10pcs USB Type C Right Angle 24 Pin Connector Through Hole for PCB Mount
Features:
- USB 3.1, Type C,Right Angle, 24 Pin, Through Hole,PCB Mount；
- Reversible plug and cable orientation for better user experience；
- Smaller connector size saves space；
- Easy and Quick usage；
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
Terminal type
Solder Type
-
Installation characteristics
Through Hole
-
Gender
Female
-
Number of Positions
24pin
-
Port number
Single
-
waterproof level
Not Waterproof
-
Standard
USB 3.0
-
Connector Type
Type C
- Description
Applications:
- Industrial machinery
- Technology devices
- Hard Disk Drives
- Flash Disk
- Mobile Phone/Tablet
- VR Camera
- Charger
- Car Media Player/Hub
Electrical Characteristics
- voltage Rating: 5V AC
- Contact Rating:5.0A
- Contact Resistance: 40 milliohms max
- Insulation Resistance: 100 megohms
- Withstanding Voltage: 100V AC
Mechanical Characteristics
- Mating force: 5N to 20N
- UNmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature：-30°C~ + 85°C
Material:
| Part | Material | Finish |
| Housing | High Temperature Polymer | UL94V-0, Black |
| Shell | Stainless Steel | ------ |
| Contact | Copper Alloy | ------ |
