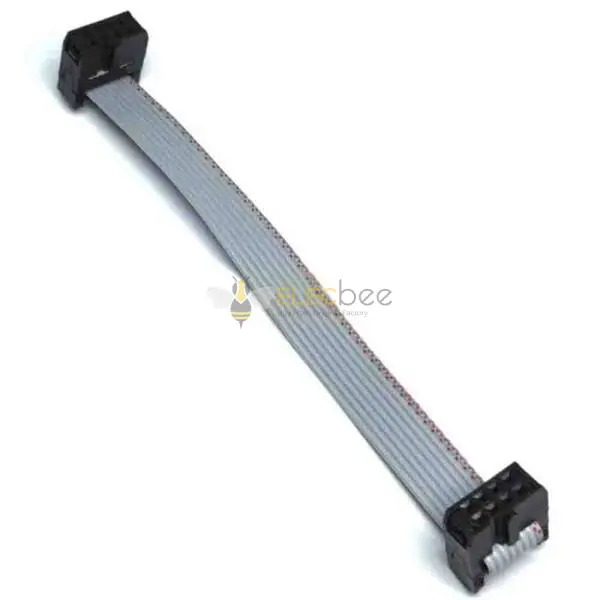

2.54mm Pitch 2x4 Pin 8 Pin IDC Flat Ribbon Cable Length 20cm
Features:
- IDT,8 Positions,2 Rows,Socket (Female),2.54mm Pitch,Wire IDC Flat Ribbon Cable, Straight
- Good appearance, plastic parts must not have injection defects, etc.
- Metal parts must not have scratches, deformations, etc.
- On-off performance meets regulatory requirements
- Widely used in various computers, instruments, machines, electrical appliances, automobiles, color TVs, air
- conditioners, LED displays, DVD, VCD and other connectors and connectors.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Connector A Type
IDC
-
Connector A Gender
Female
-
Connector A Direction
Straight
-
Connector B Type
IDC
-
Connector B Gender
Female
-
Connector B Direction
Straight
- Description
Main Application of d-sub Cable Connectors:
- computer,
- Instruments, machines, electrical appliances, color TV sets, air conditioners
- LED display
- Various connectors and connectors such as DVD and VCD
Electrical Characteristics
- IDC Connector Pitch:2.54mm
- Cable Pitch:1.27mm
- Conductor: 7/0.10mm(Tin Plated Copper)
- Two 2.54mm pitch 2x4Pin female IDC connectors on each end.
- Withstand voltage 2KV 10mA/
- Conductor resistance ≤ 237 ohm / RM ↓
- Insulation resistance ≥100m ohm/RM↑
- Capacitor 40PF/M
- Impedance 100 ohms
- Working temperature: -40 ° C ~ +105 ° C
Mechanical Characteristics
- Engagement Force：15 N (3.37 lb) typical
- Disengagement Force：10 N (2.25 lb) typical
- Retention Force of Interface：550 N (123.65 lb) min
- Connector Durability：500 mating cycles min
- These characteristics are typical and may not apply to all connectors.
Environmental Characteristics
- Temperature Range：-65°C to +165°C
